| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_025T01_9000006312_47288cztM0_level2.fits | modeM0/AS1A13_025T01_9000006312_47288cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,588,480 | 108,544,320 |
| Size | 484.1 MB | 103.5 MB |
| Events in quadrant A | 8,519,776 | 690,538 |
| Events in quadrant B | 3,163,057 | 769,613 |
| Events in quadrant C | 3,422,691 | 707,636 |
| Events in quadrant D | 3,177,279 | 663,303 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29983 | 2 |
| B | 0 | 13952 | 2 |
| C | 0 | 14962 | 2 |
| D | 0 | 14363 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6534 | 595 | 9.106214% |
| B | 6534 | 94 | 1.438629% |
| C | 6534 | 181 | 2.770125% |
| D | 6534 | 28 | 0.428528% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7644 | 6535 | 227 | 227 | 2.97% | 3.47% |  |
| B | 7644 | 6535 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7644 | 6535 | 146 | 146 | 1.91% | 2.23% |  |
| D | 7644 | 6535 | 22 | 22 | 0.29% | 0.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3642908 | 24122.48 | 728 | 714 | 151.0 |
| A | 15 | 235 | 1540373 | 10197.26 | 728 | 714 | 151.0 |
| A | 9 | 191 | 500341 | 3309.06 | 728 | 714 | 151.0 |
| B | 0 | 200 | 79121 | 529.4 | 756 | 734 | 148.1 |
| B | 0 | 183 | 31105 | 205.11 | 756 | 734 | 148.1 |
| B | 0 | 198 | 23425 | 153.25 | 756 | 734 | 148.1 |
| C | 12 | 2 | 525152 | 3047.66 | 729 | 734 | 172.1 |
| C | 14 | 254 | 31924 | 181.26 | 729 | 734 | 172.1 |
| C | 3 | 110 | 11063 | 60.03 | 729 | 734 | 172.1 |
| D | 10 | 181 | 90708 | 486.34 | 733 | 710 | 185.1 |
| D | 2 | 249 | 58216 | 310.76 | 733 | 710 | 185.1 |
| D | 11 | 192 | 40879 | 217.07 | 733 | 710 | 185.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

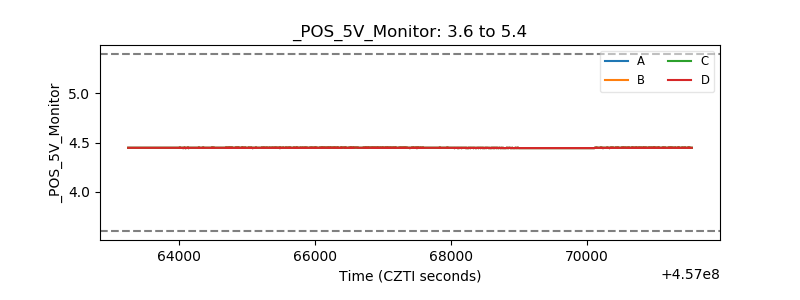

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
