| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_025T01_9000006312_47289cztM0_level2.fits | modeM0/AS1A13_025T01_9000006312_47289cztM0_level2_quad_clean.evt |
| Size (bytes) | 123,739,200 | 24,707,520 |
| Size | 118.0 MB | 23.6 MB |
| Events in quadrant A | 1,786,453 | 148,012 |
| Events in quadrant B | 957,355 | 171,414 |
| Events in quadrant C | 719,453 | 164,542 |
| Events in quadrant D | 990,235 | 145,618 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 4 |
| B | 0 | 8 | 1 |
| C | 0 | 11 | 3 |
| D | 0 | 8 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11507 | 5082 |
| B | 0 | 6282 | 2293 |
| C | 0 | 5659 | 2212 |
| D | 0 | 6429 | 2209 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 55 | 17 |
| B | 0 | 57 | 22 |
| C | 0 | 58 | 20 |
| D | 0 | 56 | 20 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1515 | 85 | 5.610561% |
| B | 1629 | 53 | 3.253530% |
| C | 1633 | 9 | 0.551133% |
| D | 1622 | 90 | 5.548705% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2782 | 1618 | 3 | 3 | 0.11% | 0.19% |  |
| B | 2797 | 1756 | 2 | 2 | 0.07% | 0.11% |  |
| C | 2803 | 1747 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2842 | 1742 | 63 | 63 | 2.22% | 3.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 790879 | 22680.03 | 158 | 154 | 34.9 |
| A | 15 | 235 | 342780 | 9827.4 | 158 | 154 | 34.9 |
| A | 9 | 191 | 40402 | 1154.42 | 158 | 154 | 34.9 |
| B | 0 | 200 | 94061 | 2457.38 | 180 | 175 | 38.2 |
| B | 4 | 171 | 93920 | 2453.69 | 180 | 175 | 38.2 |
| B | 0 | 190 | 30507 | 793.91 | 180 | 175 | 38.2 |
| C | 14 | 254 | 19405 | 432.45 | 177 | 178 | 44.5 |
| C | 10 | 20 | 2138 | 44.08 | 177 | 178 | 44.5 |
| C | 5 | 4 | 1867 | 37.99 | 177 | 178 | 44.5 |
| D | 1 | 232 | 183006 | 4075.89 | 170 | 164 | 44.9 |
| D | 7 | 38 | 98981 | 2202.82 | 170 | 164 | 44.9 |
| D | 14 | 34 | 18093 | 399.67 | 170 | 164 | 44.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

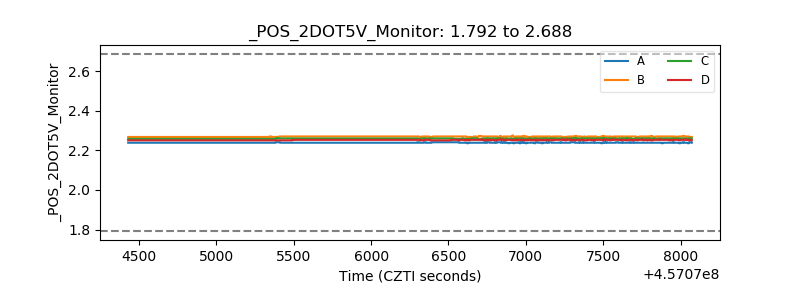

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
