| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_025T01_9000006312_47302cztM0_level2.fits | modeM0/AS1A13_025T01_9000006312_47302cztM0_level2_quad_clean.evt |
| Size (bytes) | 257,734,080 | 60,229,440 |
| Size | 245.8 MB | 57.4 MB |
| Events in quadrant A | 4,147,248 | 377,071 |
| Events in quadrant B | 1,847,468 | 426,021 |
| Events in quadrant C | 1,544,898 | 401,175 |
| Events in quadrant D | 1,720,276 | 365,337 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14867 | 1 |
| B | 0 | 8034 | 1 |
| C | 0 | 7327 | 1 |
| D | 0 | 7843 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 72 | 0 |
| B | 0 | 72 | 0 |
| C | 0 | 72 | 0 |
| D | 0 | 72 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3591 | 303 | 8.437761% |
| B | 3591 | 31 | 0.863269% |
| C | 3591 | 2 | 0.055695% |
| D | 3591 | 22 | 0.612643% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3591 | 3591 | 207 | 207 | 5.76% | 5.76% |  |
| B | 3591 | 3591 | 19 | 19 | 0.53% | 0.53% |  |
| C | 3591 | 3591 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3591 | 3591 | 18 | 18 | 0.50% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1928129 | 24203.12 | 376 | 368 | 79.6 |
| A | 15 | 235 | 415478 | 5211.72 | 376 | 368 | 79.6 |
| A | 9 | 191 | 316402 | 3967.82 | 376 | 368 | 79.6 |
| B | 0 | 200 | 103770 | 1334.19 | 397 | 386 | 77.5 |
| B | 0 | 190 | 57442 | 736.32 | 397 | 386 | 77.5 |
| B | 15 | 201 | 45284 | 579.42 | 397 | 386 | 77.5 |
| C | 3 | 233 | 16470 | 174.51 | 389 | 392 | 92.1 |
| C | 14 | 254 | 8071 | 83.35 | 389 | 392 | 92.1 |
| C | 0 | 207 | 4033 | 39.52 | 389 | 392 | 92.1 |
| D | 2 | 249 | 149945 | 1548.04 | 382 | 370 | 96.6 |
| D | 8 | 176 | 54644 | 561.71 | 382 | 370 | 96.6 |
| D | 12 | 2 | 18000 | 182.46 | 382 | 370 | 96.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

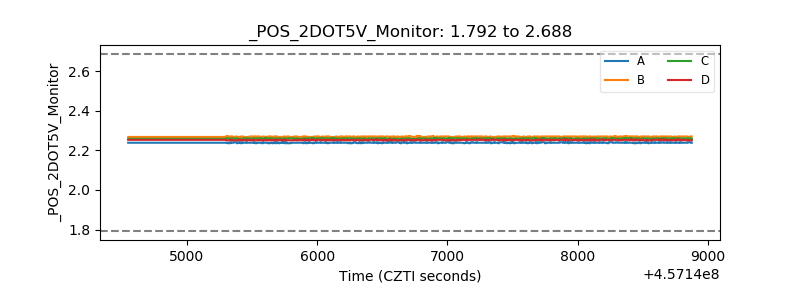

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
