| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_008T03_9000006306_47261cztM0_level2.fits | modeM0/AS1C09_008T03_9000006306_47261cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,695,179,520 | 239,572,800 |
| Size | 1.6 GB | 228.5 MB |
| Events in quadrant A | 18,169,964 | 1,701,885 |
| Events in quadrant B | 8,331,477 | 1,824,444 |
| Events in quadrant C | 7,171,880 | 1,749,925 |
| Events in quadrant D | 27,790,005 | 827,427 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 65945 | 600 |
| B | 0 | 36816 | 268 |
| C | 0 | 34570 | 239 |
| D | 0 | 95856 | 1892 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 342 | 2 |
| B | 0 | 342 | 0 |
| C | 0 | 342 | 4 |
| D | 0 | 342 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16661 | 1100 | 6.602245% |
| B | 16703 | 444 | 2.658205% |
| C | 16708 | 128 | 0.766100% |
| D | 16585 | 8205 | 49.472415% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18833 | 16737 | 221 | 221 | 1.17% | 1.32% |  |
| B | 18838 | 16773 | 49 | 49 | 0.26% | 0.29% |  |
| C | 18826 | 16767 | 4 | 4 | 0.02% | 0.02% |  |
| D | 18834 | 16671 | 7468 | 7468 | 39.65% | 44.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8798014 | 23450.25 | 1830 | 1790 | 375.1 |
| A | 9 | 191 | 2211917 | 5892.08 | 1830 | 1790 | 375.1 |
| A | 10 | 255 | 35154 | 88.95 | 1830 | 1790 | 375.1 |
| B | 0 | 200 | 406715 | 1141.89 | 1846 | 1786 | 354.6 |
| B | 5 | 32 | 162990 | 454.59 | 1846 | 1786 | 354.6 |
| B | 0 | 190 | 137468 | 382.62 | 1846 | 1786 | 354.6 |
| C | 14 | 254 | 45584 | 104.15 | 1811 | 1814 | 420.2 |
| C | 0 | 207 | 19627 | 42.39 | 1811 | 1814 | 420.2 |
| C | 3 | 233 | 17796 | 38.03 | 1811 | 1814 | 420.2 |
| D | 12 | 1 | 21823956 | 75846.04 | 1137 | 1097 | 287.7 |
| D | 6 | 112 | 1300843 | 4517.31 | 1137 | 1097 | 287.7 |
| D | 12 | 233 | 75574 | 258.85 | 1137 | 1097 | 287.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

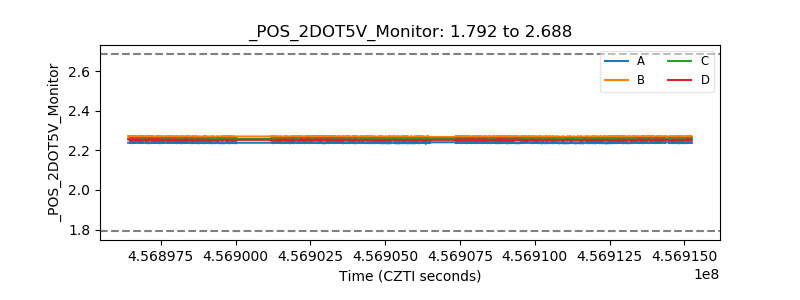

| +2.5 Volts monitor |  |

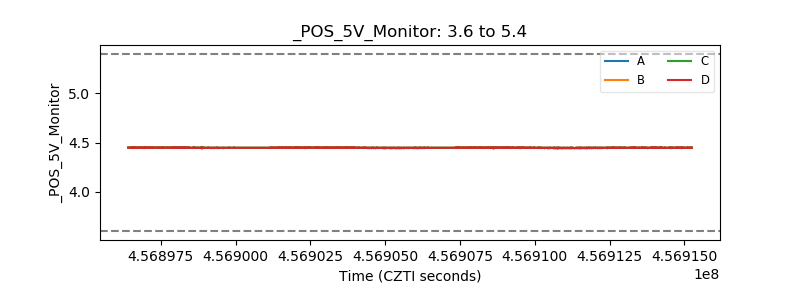

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
