| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_008T03_9000006306_47262cztM0_level2.fits | modeM0/AS1C09_008T03_9000006306_47262cztM0_level2_quad_clean.evt |
| Size (bytes) | 691,508,160 | 100,589,760 |
| Size | 659.5 MB | 95.9 MB |
| Events in quadrant A | 7,357,261 | 716,899 |
| Events in quadrant B | 3,450,929 | 746,797 |
| Events in quadrant C | 2,955,858 | 704,166 |
| Events in quadrant D | 11,297,787 | 395,366 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27610 | 953 |
| B | 0 | 15453 | 353 |
| C | 0 | 14527 | 335 |
| D | 0 | 39859 | 1656 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 2 |
| B | 0 | 144 | 2 |
| C | 0 | 144 | 2 |
| D | 0 | 144 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6880 | 219 | 3.183140% |
| B | 6953 | 56 | 0.805408% |
| C | 6953 | 24 | 0.345175% |
| D | 6849 | 2950 | 43.071981% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7122 | 6994 | 42 | 42 | 0.59% | 0.60% |  |
| B | 7123 | 7046 | 22 | 22 | 0.31% | 0.31% |  |
| C | 7122 | 7051 | 22 | 22 | 0.31% | 0.31% |  |
| D | 7122 | 6965 | 2552 | 2552 | 35.83% | 36.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3523174 | 22369.62 | 746 | 730 | 157.5 |
| A | 9 | 191 | 912267 | 5788.8 | 746 | 730 | 157.5 |
| A | 15 | 235 | 22682 | 139.41 | 746 | 730 | 157.5 |
| B | 0 | 200 | 269738 | 1816.32 | 751 | 727 | 148.1 |
| B | 5 | 32 | 73775 | 493.21 | 751 | 727 | 148.1 |
| B | 0 | 183 | 42661 | 283.13 | 751 | 727 | 148.1 |
| C | 14 | 254 | 92618 | 533.59 | 732 | 735 | 172.2 |
| C | 3 | 233 | 6400 | 32.9 | 732 | 735 | 172.2 |
| C | 13 | 61 | 4936 | 24.4 | 732 | 735 | 172.2 |
| D | 12 | 1 | 7712654 | 58986.54 | 518 | 500 | 130.7 |
| D | 6 | 112 | 1347080 | 10299.34 | 518 | 500 | 130.7 |
| D | 1 | 47 | 104399 | 794.67 | 518 | 500 | 130.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

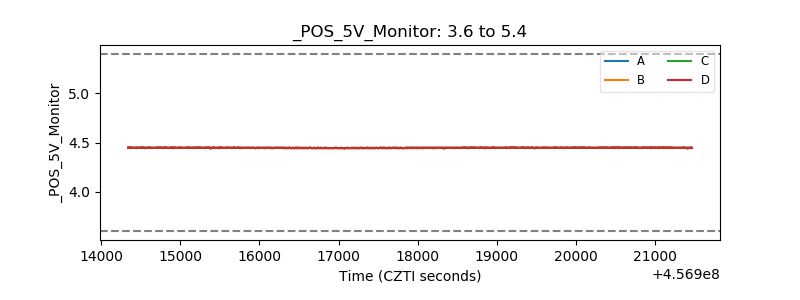

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
