| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_008T04_9000006308_47266cztM0_level2.fits | modeM0/AS1C09_008T04_9000006308_47266cztM0_level2_quad_clean.evt |
| Size (bytes) | 352,157,760 | 60,580,800 |
| Size | 335.8 MB | 57.8 MB |
| Events in quadrant A | 4,803,459 | 339,653 |
| Events in quadrant B | 2,289,047 | 457,518 |
| Events in quadrant C | 2,127,305 | 431,786 |
| Events in quadrant D | 3,475,442 | 296,217 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37885 | 20690 |
| B | 0 | 20523 | 10567 |
| C | 0 | 19134 | 9396 |
| D | 0 | 33949 | 20783 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 2 | 1 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 188 | 94 |
| B | 0 | 184 | 82 |
| C | 0 | 182 | 77 |
| D | 0 | 183 | 85 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3963 | 522 | 13.171840% |
| B | 4698 | 157 | 3.341848% |
| C | 4714 | 116 | 2.460755% |
| D | 4010 | 595 | 14.837905% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9806 | 4771 | 277 | 277 | 2.82% | 5.81% |  |
| B | 9813 | 5448 | 9 | 9 | 0.09% | 0.17% |  |
| C | 9817 | 5517 | 4 | 4 | 0.04% | 0.07% |  |
| D | 9817 | 4783 | 316 | 316 | 3.22% | 6.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1928373 | 21055.68 | 432 | 422 | 91.6 |
| A | 9 | 191 | 1158185 | 12644.25 | 432 | 422 | 91.6 |
| A | 13 | 248 | 39289 | 424.48 | 432 | 422 | 91.6 |
| B | 0 | 200 | 78511 | 724.85 | 532 | 514 | 107.6 |
| B | 0 | 198 | 27171 | 247.73 | 532 | 514 | 107.6 |
| B | 5 | 172 | 17465 | 157.53 | 532 | 514 | 107.6 |
| C | 14 | 254 | 48654 | 382.49 | 527 | 528 | 125.8 |
| C | 12 | 250 | 11374 | 86.2 | 527 | 528 | 125.8 |
| C | 10 | 9 | 8654 | 64.58 | 527 | 528 | 125.8 |
| D | 6 | 112 | 1354689 | 12310.1 | 431 | 417 | 110.0 |
| D | 2 | 249 | 215152 | 1951.9 | 431 | 417 | 110.0 |
| D | 12 | 233 | 165731 | 1502.68 | 431 | 417 | 110.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

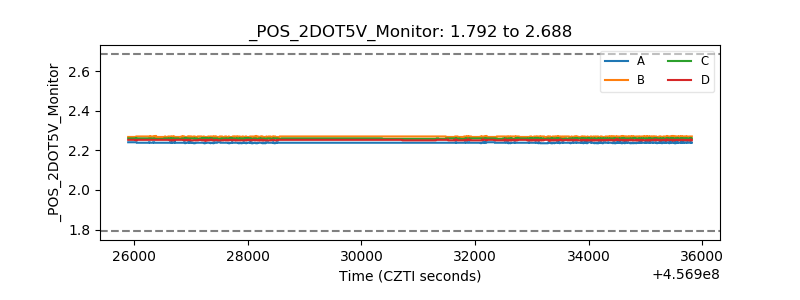

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
