| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T12_9000006314_47302cztM0_level2.fits | modeM0/AS1A13_093T12_9000006314_47302cztM0_level2_quad_clean.evt |
| Size (bytes) | 187,675,200 | 37,284,480 |
| Size | 179.0 MB | 35.6 MB |
| Events in quadrant A | 2,759,621 | 237,679 |
| Events in quadrant B | 1,187,119 | 262,484 |
| Events in quadrant C | 1,147,141 | 255,926 |
| Events in quadrant D | 1,676,575 | 211,070 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 46 | 0 |
| C | 0 | 46 | 0 |
| D | 0 | 46 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9804 | 1 |
| B | 0 | 5054 | 1 |
| C | 0 | 5065 | 1 |
| D | 0 | 6716 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2247 | 222 | 9.879840% |
| B | 2247 | 68 | 3.026257% |
| C | 2247 | 72 | 3.204272% |
| D | 2247 | 309 | 13.751669% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3402 | 2248 | 50 | 50 | 1.47% | 2.22% |  |
| B | 3402 | 2248 | 13 | 13 | 0.38% | 0.58% |  |
| C | 3402 | 2248 | 35 | 35 | 1.03% | 1.56% |  |
| D | 3402 | 2248 | 154 | 154 | 4.53% | 6.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1389418 | 26273.02 | 250 | 244 | 52.9 |
| A | 9 | 191 | 261364 | 4938.48 | 250 | 244 | 52.9 |
| A | 15 | 235 | 122803 | 2317.92 | 250 | 244 | 52.9 |
| B | 0 | 200 | 85517 | 1634.63 | 260 | 252 | 52.2 |
| B | 5 | 171 | 40093 | 763.8 | 260 | 252 | 52.2 |
| B | 0 | 198 | 9185 | 171.26 | 260 | 252 | 52.2 |
| C | 14 | 254 | 117859 | 1926.33 | 258 | 259 | 61.0 |
| C | 3 | 233 | 12497 | 200.46 | 258 | 259 | 61.0 |
| C | 1 | 3 | 5817 | 91.04 | 258 | 259 | 61.0 |
| D | 12 | 2 | 667995 | 10685.64 | 243 | 233 | 62.5 |
| D | 11 | 192 | 31034 | 492.88 | 243 | 233 | 62.5 |
| D | 13 | 23 | 15565 | 245.35 | 243 | 233 | 62.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

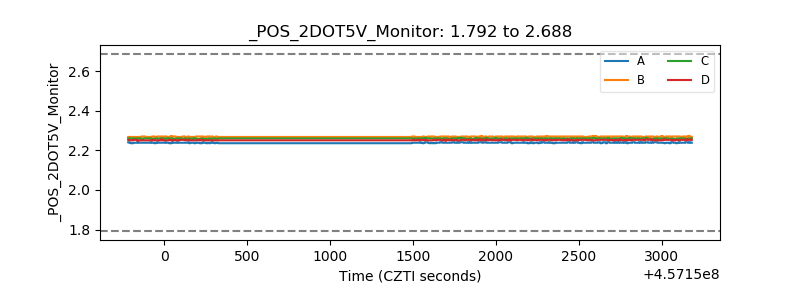

| +2.5 Volts monitor |  |

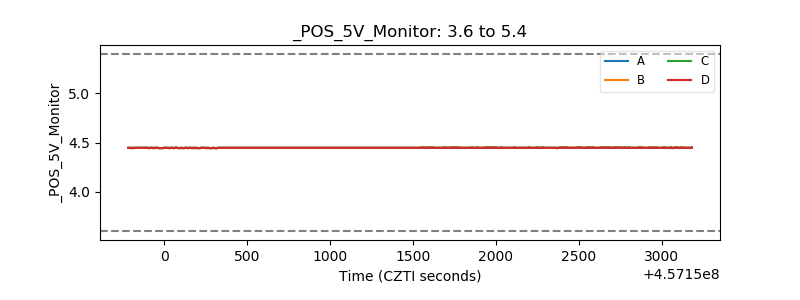

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
