| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T12_9000006314_47305cztM0_level2.fits | modeM0/AS1A13_093T12_9000006314_47305cztM0_level2_quad_clean.evt |
| Size (bytes) | 697,170,240 | 114,569,280 |
| Size | 664.9 MB | 109.3 MB |
| Events in quadrant A | 11,620,510 | 642,211 |
| Events in quadrant B | 3,985,432 | 810,707 |
| Events in quadrant C | 3,545,589 | 824,886 |
| Events in quadrant D | 6,044,072 | 642,972 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39986 | 3 |
| B | 0 | 17407 | 1 |
| C | 0 | 16612 | 1 |
| D | 0 | 24004 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7879 | 2053 | 26.056606% |
| B | 7880 | 439 | 5.571066% |
| C | 7880 | 153 | 1.941624% |
| D | 7880 | 1239 | 15.723350% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7879 | 7879 | 1045 | 1045 | 13.26% | 13.26% |  |
| B | 7910 | 7881 | 16 | 16 | 0.20% | 0.20% |  |
| C | 7910 | 7881 | 20 | 20 | 0.25% | 0.25% |  |
| D | 7910 | 7881 | 804 | 804 | 10.16% | 10.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3801938 | 22626.74 | 802 | 783 | 168.0 |
| A | 15 | 235 | 2988896 | 17787.03 | 802 | 783 | 168.0 |
| A | 14 | 248 | 992223 | 5901.64 | 802 | 783 | 168.0 |
| B | 0 | 200 | 353706 | 2070.28 | 866 | 838 | 170.4 |
| B | 0 | 198 | 86068 | 500.04 | 866 | 838 | 170.4 |
| B | 0 | 190 | 35151 | 201.31 | 866 | 838 | 170.4 |
| C | 12 | 2 | 79160 | 386.94 | 863 | 863 | 202.3 |
| C | 14 | 254 | 66361 | 323.69 | 863 | 863 | 202.3 |
| C | 3 | 233 | 20515 | 97.12 | 863 | 863 | 202.3 |
| D | 12 | 2 | 2876736 | 14707.97 | 781 | 752 | 195.5 |
| D | 7 | 38 | 48965 | 246.56 | 781 | 752 | 195.5 |
| D | 2 | 234 | 41598 | 208.89 | 781 | 752 | 195.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

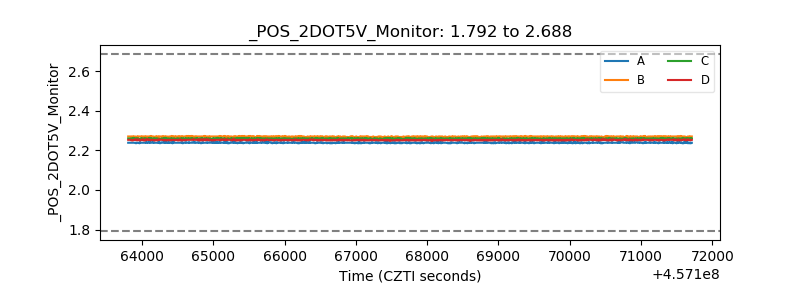

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
