| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T12_9000006314_47313cztM0_level2.fits | modeM0/AS1A13_093T12_9000006314_47313cztM0_level2_quad_clean.evt |
| Size (bytes) | 173,816,640 | 28,382,400 |
| Size | 165.8 MB | 27.1 MB |
| Events in quadrant A | 2,267,028 | 182,899 |
| Events in quadrant B | 848,505 | 203,494 |
| Events in quadrant C | 1,505,288 | 173,243 |
| Events in quadrant D | 1,676,151 | 172,095 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 36 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 1 | 140177752414248 | 140174847639598 |
| B | 1 | -1 | -1 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8012 | 1 |
| B | 0 | 3670 | 1 |
| C | 0 | 5572 | 1 |
| D | 0 | 6168 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1739 | 196 | 11.270845% |
| B | 1739 | 6 | 0.345026% |
| C | 1739 | 226 | 12.995975% |
| D | 1739 | 145 | 8.338125% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1739 | 1739 | 84 | 84 | 4.83% | 4.83% |  |
| B | 1739 | 1739 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1739 | 1739 | 197 | 197 | 11.33% | 11.33% |  |
| D | 1739 | 1739 | 162 | 162 | 9.32% | 9.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1258141 | 30309.15 | 193 | 189 | 41.5 |
| A | 9 | 191 | 207358 | 4991.54 | 193 | 189 | 41.5 |
| A | 15 | 235 | 41433 | 993.73 | 193 | 189 | 41.5 |
| B | 0 | 197 | 11642 | 280.09 | 201 | 195 | 40.9 |
| B | 14 | 167 | 6634 | 157.55 | 201 | 195 | 40.9 |
| B | 0 | 198 | 6367 | 151.02 | 201 | 195 | 40.9 |
| C | 12 | 2 | 659030 | 14725.66 | 183 | 184 | 44.7 |
| C | 3 | 233 | 123122 | 2747.75 | 183 | 184 | 44.7 |
| C | 14 | 254 | 5151 | 111.02 | 183 | 184 | 44.7 |
| D | 6 | 112 | 611118 | 12049.98 | 198 | 192 | 50.7 |
| D | 11 | 192 | 101337 | 1995.0 | 198 | 192 | 50.7 |
| D | 12 | 128 | 81296 | 1599.71 | 198 | 192 | 50.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

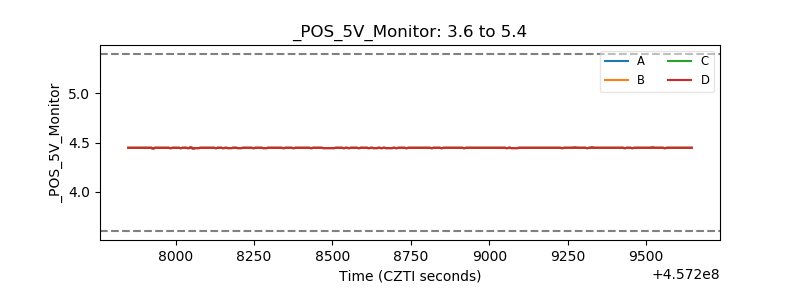

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
