| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T23_9000006316_47318cztM0_level2.fits | modeM0/AS1A13_093T23_9000006316_47318cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,548,480 | 114,013,440 |
| Size | 522.2 MB | 108.7 MB |
| Events in quadrant A | 8,310,355 | 736,353 |
| Events in quadrant B | 3,381,457 | 791,778 |
| Events in quadrant C | 3,344,901 | 746,998 |
| Events in quadrant D | 4,683,073 | 683,999 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29972 | 3 |
| B | 0 | 14783 | 2 |
| C | 0 | 15000 | 2 |
| D | 0 | 18883 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7079 | 550 | 7.769459% |
| B | 7079 | 146 | 2.062438% |
| C | 7079 | 122 | 1.723407% |
| D | 7079 | 188 | 2.655742% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7874 | 7080 | 219 | 219 | 2.78% | 3.09% |  |
| B | 7874 | 7080 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7874 | 7080 | 18 | 18 | 0.23% | 0.25% |  |
| D | 7874 | 7080 | 94 | 94 | 1.19% | 1.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3802738 | 22752.68 | 806 | 788 | 167.1 |
| A | 9 | 191 | 747470 | 4468.5 | 806 | 788 | 167.1 |
| A | 15 | 235 | 612908 | 3663.22 | 806 | 788 | 167.1 |
| B | 0 | 198 | 27633 | 164.34 | 822 | 797 | 163.3 |
| B | 5 | 32 | 21208 | 124.99 | 822 | 797 | 163.3 |
| B | 12 | 111 | 21033 | 123.92 | 822 | 797 | 163.3 |
| C | 14 | 254 | 119890 | 620.59 | 808 | 812 | 191.9 |
| C | 12 | 2 | 48370 | 247.85 | 808 | 812 | 191.9 |
| C | 3 | 233 | 23376 | 117.6 | 808 | 812 | 191.9 |
| D | 6 | 112 | 1426888 | 7007.47 | 804 | 781 | 203.5 |
| D | 2 | 165 | 52952 | 256.35 | 804 | 781 | 203.5 |
| D | 2 | 234 | 31614 | 151.5 | 804 | 781 | 203.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

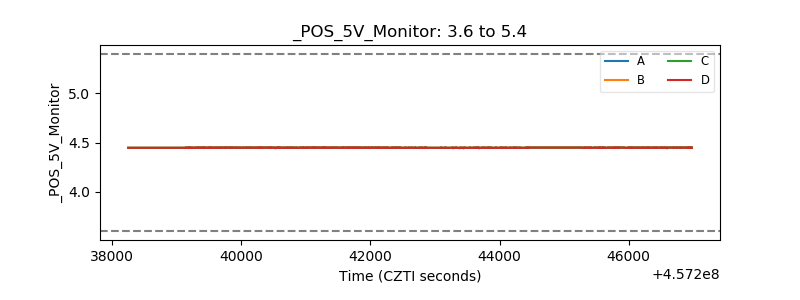

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
