| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006318_47328cztM0_level2.fits | modeM0/AS1A13_037T01_9000006318_47328cztM0_level2_quad_clean.evt |
| Size (bytes) | 588,810,240 | 109,016,640 |
| Size | 561.5 MB | 104.0 MB |
| Events in quadrant A | 7,473,933 | 687,335 |
| Events in quadrant B | 3,150,163 | 786,509 |
| Events in quadrant C | 5,983,512 | 707,907 |
| Events in quadrant D | 4,684,417 | 665,608 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26781 | 2 |
| B | 0 | 14006 | 2 |
| C | 0 | 22167 | 2 |
| D | 0 | 18361 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6511 | 633 | 9.722009% |
| B | 6511 | 90 | 1.382276% |
| C | 6511 | 449 | 6.896022% |
| D | 6512 | 350 | 5.374693% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8656 | 6513 | 263 | 263 | 3.04% | 4.04% |  |
| B | 8656 | 6513 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8656 | 6513 | 449 | 449 | 5.19% | 6.89% |  |
| D | 8657 | 6514 | 224 | 224 | 2.59% | 3.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3619153 | 23356.53 | 742 | 727 | 154.9 |
| A | 15 | 235 | 610929 | 3938.78 | 742 | 727 | 154.9 |
| A | 9 | 191 | 332793 | 2143.45 | 742 | 727 | 154.9 |
| B | 0 | 183 | 50024 | 327.1 | 760 | 736 | 150.7 |
| B | 0 | 198 | 40545 | 264.19 | 760 | 736 | 150.7 |
| B | 12 | 111 | 18858 | 120.27 | 760 | 736 | 150.7 |
| C | 12 | 2 | 3026992 | 17414.59 | 737 | 742 | 173.8 |
| C | 3 | 233 | 75205 | 428.5 | 737 | 742 | 173.8 |
| C | 12 | 249 | 5990 | 30.2 | 737 | 742 | 173.8 |
| D | 12 | 2 | 842558 | 4553.52 | 742 | 720 | 184.9 |
| D | 10 | 204 | 419022 | 2262.6 | 742 | 720 | 184.9 |
| D | 7 | 38 | 179405 | 966.51 | 742 | 720 | 184.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

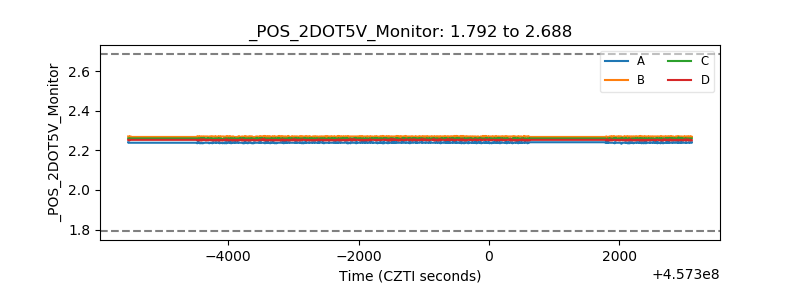

| +2.5 Volts monitor |  |

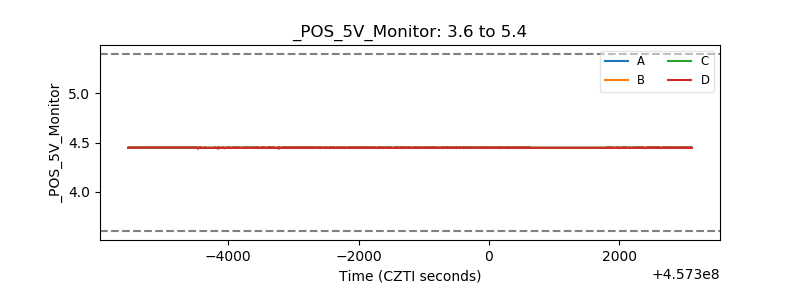

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
