| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006318_47330cztM0_level2.fits | modeM0/AS1A13_037T01_9000006318_47330cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,160,320 | 99,878,400 |
| Size | 555.2 MB | 95.3 MB |
| Events in quadrant A | 8,201,555 | 647,280 |
| Events in quadrant B | 2,952,436 | 758,632 |
| Events in quadrant C | 2,959,693 | 711,248 |
| Events in quadrant D | 6,949,742 | 469,393 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28759 | 2 |
| B | 0 | 13112 | 2 |
| C | 0 | 13243 | 2 |
| D | 0 | 24964 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6268 | 804 | 12.827058% |
| B | 6268 | 36 | 0.574346% |
| C | 6268 | 19 | 0.303127% |
| D | 6268 | 1815 | 28.956605% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7498 | 6269 | 463 | 463 | 6.17% | 7.39% |  |
| B | 7498 | 6269 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7498 | 6269 | 8 | 8 | 0.11% | 0.13% |  |
| D | 7498 | 6268 | 1329 | 1329 | 17.72% | 21.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3300549 | 23355.03 | 687 | 673 | 141.3 |
| A | 15 | 235 | 1669192 | 11809.02 | 687 | 673 | 141.3 |
| A | 9 | 191 | 553765 | 3914.53 | 687 | 673 | 141.3 |
| B | 4 | 171 | 21528 | 145.69 | 724 | 701 | 143.0 |
| B | 5 | 32 | 18350 | 123.46 | 724 | 701 | 143.0 |
| B | 12 | 111 | 17894 | 120.27 | 724 | 701 | 143.0 |
| C | 12 | 2 | 156919 | 927.29 | 711 | 714 | 168.5 |
| C | 3 | 233 | 16073 | 91.18 | 711 | 714 | 168.5 |
| C | 12 | 249 | 10680 | 59.16 | 711 | 714 | 168.5 |
| D | 12 | 2 | 4204719 | 29152.63 | 564 | 548 | 144.2 |
| D | 10 | 204 | 276565 | 1913.96 | 564 | 548 | 144.2 |
| D | 2 | 249 | 59135 | 406.25 | 564 | 548 | 144.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

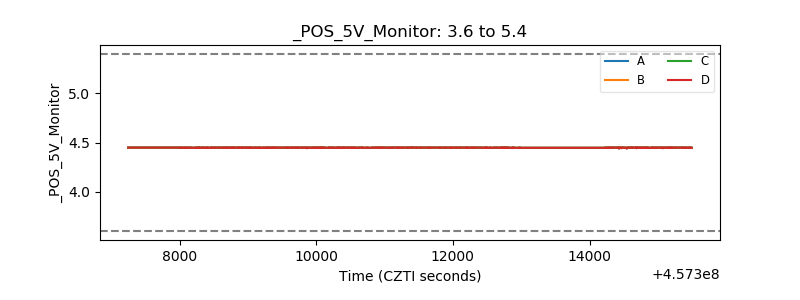

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
