| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T09_9000006320_47345cztM0_level2.fits | modeM0/AS1A13_093T09_9000006320_47345cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,808,320 | 102,919,680 |
| Size | 521.5 MB | 98.2 MB |
| Events in quadrant A | 7,029,845 | 691,441 |
| Events in quadrant B | 3,195,708 | 750,391 |
| Events in quadrant C | 2,925,438 | 718,014 |
| Events in quadrant D | 6,591,084 | 507,739 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25159 | 2 |
| B | 0 | 13870 | 2 |
| C | 0 | 13272 | 2 |
| D | 0 | 24114 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6433 | 344 | 5.347427% |
| B | 6433 | 63 | 0.979325% |
| C | 6432 | 21 | 0.326493% |
| D | 6432 | 1487 | 23.118781% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7633 | 6434 | 261 | 261 | 3.42% | 4.06% |  |
| B | 7633 | 6434 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7632 | 6433 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7632 | 6433 | 1325 | 1325 | 17.36% | 20.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3667711 | 24550.02 | 717 | 702 | 149.4 |
| A | 15 | 235 | 397642 | 2657.45 | 717 | 702 | 149.4 |
| A | 9 | 191 | 167938 | 1119.62 | 717 | 702 | 149.4 |
| B | 14 | 167 | 95923 | 660.69 | 735 | 712 | 144.1 |
| B | 0 | 190 | 82018 | 564.2 | 735 | 712 | 144.1 |
| B | 0 | 198 | 39469 | 268.94 | 735 | 712 | 144.1 |
| C | 0 | 207 | 66472 | 386.72 | 720 | 725 | 170.0 |
| C | 3 | 233 | 40836 | 235.93 | 720 | 725 | 170.0 |
| C | 12 | 2 | 11171 | 61.44 | 720 | 725 | 170.0 |
| D | 2 | 165 | 3614827 | 22830.27 | 630 | 611 | 158.3 |
| D | 2 | 249 | 382984 | 2415.37 | 630 | 611 | 158.3 |
| D | 7 | 38 | 60832 | 380.4 | 630 | 611 | 158.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

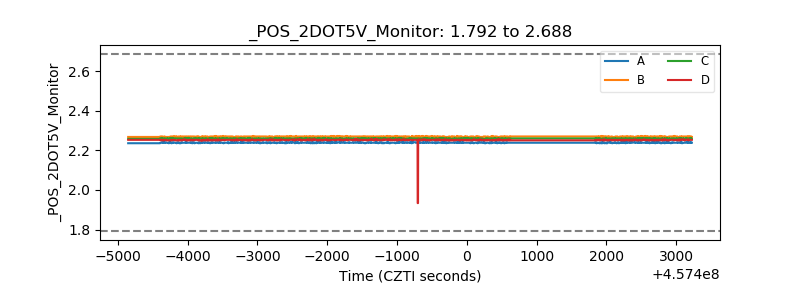

| +2.5 Volts monitor |  |

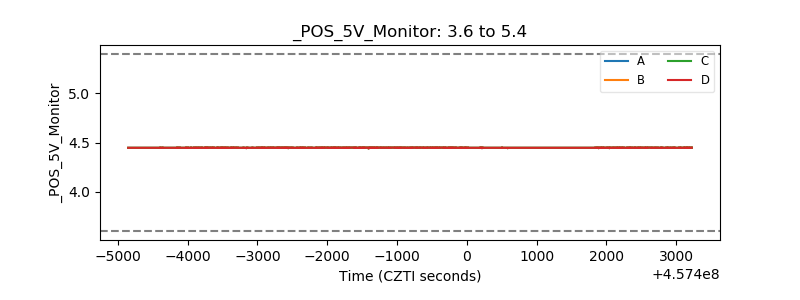

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
