| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T09_9000006320_47346cztM0_level2.fits | modeM0/AS1A13_093T09_9000006320_47346cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,850,240 | 109,958,400 |
| Size | 463.3 MB | 104.9 MB |
| Events in quadrant A | 7,260,667 | 700,580 |
| Events in quadrant B | 3,625,907 | 759,343 |
| Events in quadrant C | 3,015,518 | 734,100 |
| Events in quadrant D | 3,559,141 | 665,559 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26048 | 2 |
| B | 0 | 15424 | 2 |
| C | 0 | 13951 | 2 |
| D | 0 | 15587 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6745 | 449 | 6.656783% |
| B | 6745 | 162 | 2.401779% |
| C | 6745 | 29 | 0.429948% |
| D | 6745 | 118 | 1.749444% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9040 | 6747 | 136 | 136 | 1.50% | 2.02% |  |
| B | 9040 | 6747 | 26 | 26 | 0.29% | 0.39% |  |
| C | 9040 | 6747 | 1 | 1 | 0.01% | 0.01% |  |
| D | 9040 | 6747 | 94 | 94 | 1.04% | 1.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3809793 | 24314.27 | 753 | 736 | 156.7 |
| A | 15 | 235 | 342631 | 2182.41 | 753 | 736 | 156.7 |
| A | 9 | 191 | 182837 | 1162.4 | 753 | 736 | 156.7 |
| B | 14 | 167 | 299518 | 1948.51 | 772 | 749 | 153.3 |
| B | 0 | 190 | 141051 | 915.02 | 772 | 749 | 153.3 |
| B | 0 | 198 | 68104 | 439.27 | 772 | 749 | 153.3 |
| C | 3 | 233 | 41906 | 228.79 | 759 | 763 | 179.8 |
| C | 12 | 2 | 9949 | 51.08 | 759 | 763 | 179.8 |
| C | 13 | 61 | 5026 | 23.71 | 759 | 763 | 179.8 |
| D | 7 | 38 | 160554 | 848.34 | 747 | 725 | 188.4 |
| D | 12 | 2 | 152385 | 804.98 | 747 | 725 | 188.4 |
| D | 2 | 165 | 149298 | 788.6 | 747 | 725 | 188.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

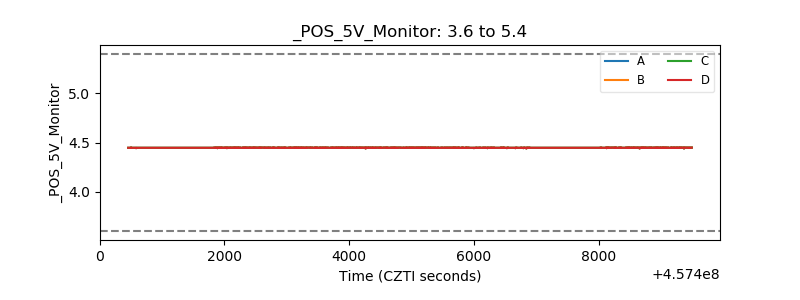

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
