| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T09_9000006320_47348cztM0_level2.fits | modeM0/AS1A13_093T09_9000006320_47348cztM0_level2_quad_clean.evt |
| Size (bytes) | 359,121,600 | 78,963,840 |
| Size | 342.5 MB | 75.3 MB |
| Events in quadrant A | 5,250,798 | 505,209 |
| Events in quadrant B | 2,596,025 | 537,377 |
| Events in quadrant C | 2,214,376 | 524,721 |
| Events in quadrant D | 2,840,135 | 469,999 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19453 | 1 |
| B | 0 | 11174 | 1 |
| C | 0 | 10365 | 1 |
| D | 0 | 12236 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5041 | 227 | 4.503075% |
| B | 5041 | 106 | 2.102757% |
| C | 5041 | 34 | 0.674469% |
| D | 5041 | 174 | 3.451696% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5851 | 5042 | 14 | 14 | 0.24% | 0.28% |  |
| B | 5851 | 5042 | 11 | 11 | 0.19% | 0.22% |  |
| C | 5851 | 5042 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5851 | 5042 | 139 | 139 | 2.38% | 2.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2766519 | 23956.05 | 551 | 540 | 115.5 |
| A | 9 | 191 | 191327 | 1652.4 | 551 | 540 | 115.5 |
| A | 15 | 235 | 149605 | 1291.05 | 551 | 540 | 115.5 |
| B | 0 | 186 | 114507 | 1017.94 | 558 | 540 | 112.0 |
| B | 0 | 190 | 93150 | 827.18 | 558 | 540 | 112.0 |
| B | 5 | 255 | 42939 | 378.7 | 558 | 540 | 112.0 |
| C | 3 | 233 | 57236 | 428.52 | 553 | 554 | 132.3 |
| C | 13 | 61 | 3762 | 24.25 | 553 | 554 | 132.3 |
| C | 6 | 247 | 1580 | 7.76 | 553 | 554 | 132.3 |
| D | 12 | 2 | 396375 | 2847.68 | 545 | 527 | 139.0 |
| D | 7 | 38 | 204955 | 1470.63 | 545 | 527 | 139.0 |
| D | 12 | 128 | 60354 | 430.39 | 545 | 527 | 139.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

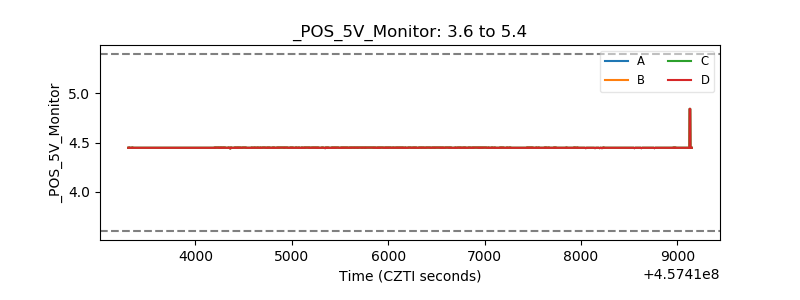

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
