| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T17_9000006322_47350cztM0_level2.fits | modeM0/AS1A13_093T17_9000006322_47350cztM0_level2_quad_clean.evt |
| Size (bytes) | 580,484,160 | 123,713,280 |
| Size | 553.6 MB | 118.0 MB |
| Events in quadrant A | 8,446,090 | 777,858 |
| Events in quadrant B | 4,085,588 | 850,525 |
| Events in quadrant C | 3,505,678 | 822,646 |
| Events in quadrant D | 4,833,455 | 741,399 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30693 | 2 |
| B | 0 | 17719 | 0 |
| C | 0 | 16334 | 0 |
| D | 0 | 19415 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7955 | 616 | 7.743558% |
| B | 7956 | 171 | 2.149321% |
| C | 7957 | 7 | 0.087973% |
| D | 7956 | 159 | 1.998492% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7956 | 7956 | 400 | 400 | 5.03% | 5.03% |  |
| B | 7956 | 7956 | 62 | 62 | 0.78% | 0.78% |  |
| C | 7957 | 7957 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7957 | 7957 | 138 | 138 | 1.73% | 1.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3877348 | 21300.47 | 867 | 849 | 182.0 |
| A | 15 | 235 | 628606 | 3449.38 | 867 | 849 | 182.0 |
| A | 9 | 191 | 572565 | 3141.45 | 867 | 849 | 182.0 |
| B | 0 | 186 | 356772 | 2041.2 | 876 | 848 | 174.4 |
| B | 0 | 190 | 146487 | 835.23 | 876 | 848 | 174.4 |
| B | 0 | 198 | 43914 | 246.98 | 876 | 848 | 174.4 |
| C | 0 | 207 | 44719 | 212.84 | 870 | 874 | 206.0 |
| C | 3 | 233 | 25053 | 117.37 | 870 | 874 | 206.0 |
| C | 12 | 249 | 22824 | 106.55 | 870 | 874 | 206.0 |
| D | 10 | 204 | 511589 | 2324.45 | 864 | 836 | 219.7 |
| D | 12 | 128 | 201954 | 915.29 | 864 | 836 | 219.7 |
| D | 7 | 38 | 194575 | 881.71 | 864 | 836 | 219.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

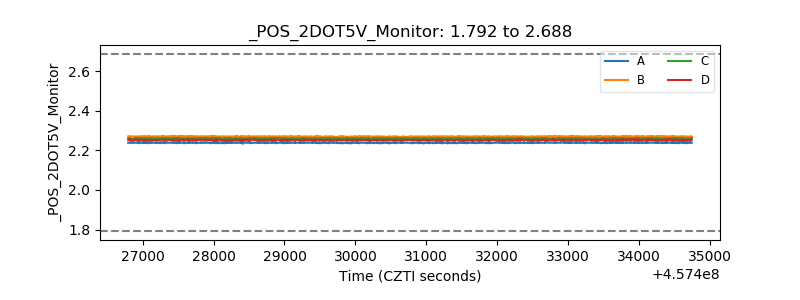

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
