| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T17_9000006322_47359cztM0_level2.fits | modeM0/AS1A13_093T17_9000006322_47359cztM0_level2_quad_clean.evt |
| Size (bytes) | 587,949,120 | 105,963,840 |
| Size | 560.7 MB | 101.1 MB |
| Events in quadrant A | 6,849,810 | 697,569 |
| Events in quadrant B | 3,291,687 | 769,911 |
| Events in quadrant C | 7,580,722 | 633,338 |
| Events in quadrant D | 3,551,550 | 665,815 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24463 | 4 |
| B | 0 | 14010 | 2 |
| C | 0 | 26926 | 2 |
| D | 0 | 14945 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6336 | 490 | 7.733586% |
| B | 6336 | 70 | 1.104798% |
| C | 6336 | 973 | 15.356692% |
| D | 6336 | 117 | 1.846591% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7566 | 6337 | 226 | 226 | 2.99% | 3.57% |  |
| B | 7566 | 6336 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7566 | 6336 | 812 | 812 | 10.73% | 12.82% |  |
| D | 7566 | 6337 | 85 | 85 | 1.12% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3517946 | 23139.26 | 734 | 717 | 152.0 |
| A | 9 | 191 | 286196 | 1878.12 | 734 | 717 | 152.0 |
| A | 15 | 235 | 168052 | 1100.87 | 734 | 717 | 152.0 |
| B | 14 | 167 | 74432 | 494.68 | 753 | 730 | 149.0 |
| B | 5 | 255 | 53280 | 352.71 | 753 | 730 | 149.0 |
| B | 0 | 190 | 52331 | 346.34 | 753 | 730 | 149.0 |
| C | 0 | 207 | 4809548 | 29585.1 | 690 | 694 | 162.5 |
| C | 3 | 233 | 49664 | 301.27 | 690 | 694 | 162.5 |
| C | 12 | 2 | 15935 | 93.77 | 690 | 694 | 162.5 |
| D | 2 | 249 | 217160 | 1158.34 | 738 | 717 | 186.9 |
| D | 12 | 233 | 159601 | 850.3 | 738 | 717 | 186.9 |
| D | 12 | 128 | 145705 | 775.93 | 738 | 717 | 186.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

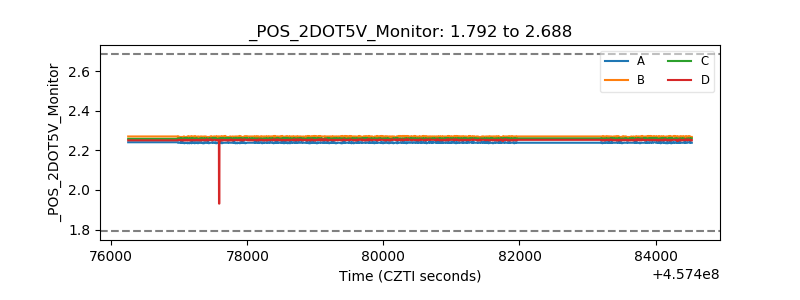

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
