| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T17_9000006322_47361cztM0_level2.fits | modeM0/AS1A13_093T17_9000006322_47361cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,419,840 | 109,823,040 |
| Size | 490.6 MB | 104.7 MB |
| Events in quadrant A | 7,134,131 | 711,003 |
| Events in quadrant B | 3,683,908 | 753,093 |
| Events in quadrant C | 3,683,373 | 728,311 |
| Events in quadrant D | 4,018,693 | 663,884 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25709 | 2 |
| B | 0 | 15597 | 2 |
| C | 0 | 15626 | 2 |
| D | 0 | 16801 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6731 | 396 | 5.883227% |
| B | 6731 | 176 | 2.614767% |
| C | 6731 | 115 | 1.708513% |
| D | 6731 | 146 | 2.169068% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7686 | 6732 | 100 | 100 | 1.30% | 1.49% |  |
| B | 7686 | 6732 | 21 | 21 | 0.27% | 0.31% |  |
| C | 7686 | 6732 | 73 | 73 | 0.95% | 1.08% |  |
| D | 7686 | 6732 | 108 | 108 | 1.41% | 1.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3738294 | 23659.77 | 753 | 735 | 158.0 |
| A | 9 | 191 | 239060 | 1508.66 | 753 | 735 | 158.0 |
| A | 15 | 235 | 196431 | 1238.81 | 753 | 735 | 158.0 |
| B | 0 | 186 | 374349 | 2453.02 | 768 | 745 | 152.3 |
| B | 5 | 255 | 85858 | 558.84 | 768 | 745 | 152.3 |
| B | 14 | 167 | 50662 | 327.75 | 768 | 745 | 152.3 |
| C | 0 | 207 | 555599 | 3080.11 | 764 | 767 | 180.1 |
| C | 3 | 233 | 83822 | 461.07 | 764 | 767 | 180.1 |
| C | 1 | 3 | 37680 | 204.92 | 764 | 767 | 180.1 |
| D | 2 | 249 | 540143 | 2793.29 | 755 | 729 | 193.1 |
| D | 2 | 165 | 395731 | 2045.47 | 755 | 729 | 193.1 |
| D | 12 | 128 | 137178 | 706.58 | 755 | 729 | 193.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

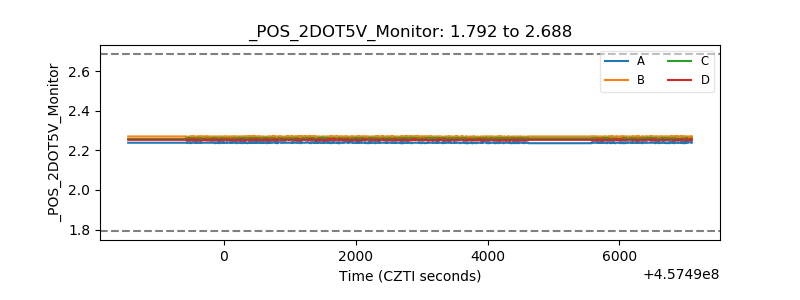

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
