| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T17_9000006322_47362cztM0_level2.fits | modeM0/AS1A13_093T17_9000006322_47362cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,224,000 | 120,723,840 |
| Size | 541.9 MB | 115.1 MB |
| Events in quadrant A | 8,857,883 | 757,851 |
| Events in quadrant B | 4,188,651 | 828,319 |
| Events in quadrant C | 3,497,901 | 809,056 |
| Events in quadrant D | 3,903,779 | 734,732 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31440 | 2 |
| B | 0 | 17928 | 2 |
| C | 0 | 15924 | 2 |
| D | 0 | 17026 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7553 | 793 | 10.499139% |
| B | 7553 | 294 | 3.892493% |
| C | 7553 | 76 | 1.006223% |
| D | 7554 | 122 | 1.615038% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9063 | 7555 | 246 | 246 | 2.71% | 3.26% |  |
| B | 9063 | 7555 | 49 | 49 | 0.54% | 0.65% |  |
| C | 9063 | 7555 | 3 | 3 | 0.03% | 0.04% |  |
| D | 9064 | 7556 | 70 | 70 | 0.77% | 0.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4063645 | 22808.27 | 852 | 833 | 178.1 |
| A | 9 | 191 | 774381 | 4342.63 | 852 | 833 | 178.1 |
| A | 15 | 235 | 680985 | 3818.31 | 852 | 833 | 178.1 |
| B | 0 | 186 | 354613 | 2013.56 | 877 | 851 | 175.7 |
| B | 5 | 255 | 229752 | 1302.87 | 877 | 851 | 175.7 |
| B | 14 | 167 | 26714 | 147.21 | 877 | 851 | 175.7 |
| C | 12 | 250 | 21353 | 97.89 | 876 | 877 | 209.2 |
| C | 1 | 3 | 21021 | 96.3 | 876 | 877 | 209.2 |
| C | 3 | 233 | 19733 | 90.15 | 876 | 877 | 209.2 |
| D | 2 | 249 | 249416 | 1118.22 | 870 | 842 | 222.3 |
| D | 12 | 128 | 176490 | 790.16 | 870 | 842 | 222.3 |
| D | 2 | 165 | 66850 | 296.94 | 870 | 842 | 222.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

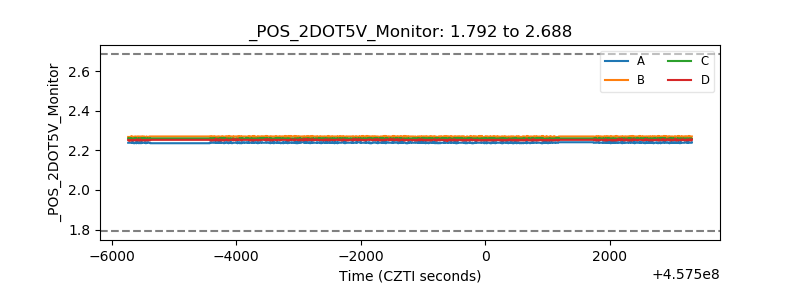

| +2.5 Volts monitor |  |

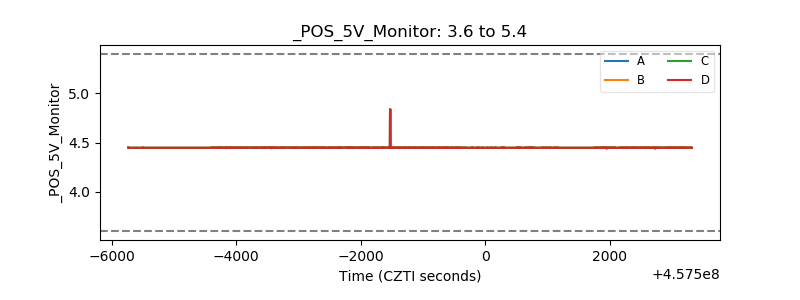

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
