| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T25_9000006324_47367cztM0_level2.fits | modeM0/AS1A13_093T25_9000006324_47367cztM0_level2_quad_clean.evt |
| Size (bytes) | 754,557,120 | 69,102,720 |
| Size | 719.6 MB | 65.9 MB |
| Events in quadrant A | 12,862,010 | 38,308 |
| Events in quadrant B | 4,334,563 | 605,255 |
| Events in quadrant C | 4,535,844 | 571,891 |
| Events in quadrant D | 5,751,521 | 474,531 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42179 | 81 |
| B | 0 | 16851 | 13 |
| C | 0 | 17450 | 1 |
| D | 0 | 21010 | 17 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5749 | 5502 | 95.703601% |
| B | 5756 | 406 | 7.053509% |
| C | 5761 | 467 | 8.106232% |
| D | 5757 | 1039 | 18.047594% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5786 | 5756 | 4907 | 4907 | 84.81% | 85.25% |  |
| B | 5786 | 5760 | 122 | 122 | 2.11% | 2.12% |  |
| C | 5786 | 5762 | 362 | 362 | 6.26% | 6.28% |  |
| D | 5786 | 5760 | 792 | 792 | 13.69% | 13.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 235 | 8469279 | 77406.75 | 512 | 498 | 109.4 |
| A | 10 | 83 | 2201635 | 20118.93 | 512 | 498 | 109.4 |
| A | 9 | 191 | 169745 | 1546.95 | 512 | 498 | 109.4 |
| B | 14 | 167 | 928548 | 7206.45 | 646 | 624 | 128.8 |
| B | 0 | 186 | 399062 | 3094.35 | 646 | 624 | 128.8 |
| B | 5 | 255 | 150341 | 1162.73 | 646 | 624 | 128.8 |
| C | 0 | 207 | 1959583 | 13050.91 | 632 | 635 | 150.1 |
| C | 1 | 3 | 61898 | 408.15 | 632 | 635 | 150.1 |
| C | 3 | 233 | 39972 | 262.07 | 632 | 635 | 150.1 |
| D | 2 | 165 | 3047859 | 20210.69 | 598 | 580 | 150.8 |
| D | 2 | 249 | 246548 | 1631.35 | 598 | 580 | 150.8 |
| D | 12 | 128 | 39335 | 257.04 | 598 | 580 | 150.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

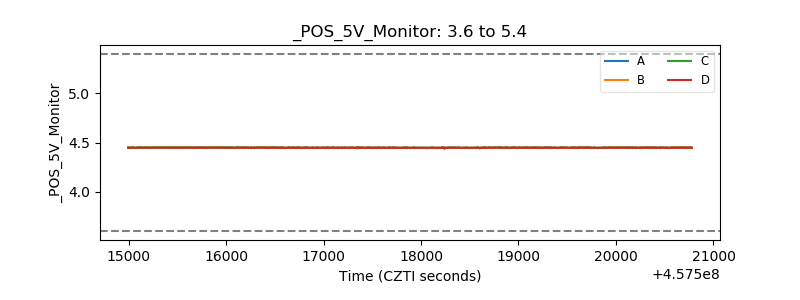

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
