| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T25_9000006324_47372cztM0_level2.fits | modeM0/AS1A13_093T25_9000006324_47372cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,104,320 | 106,827,840 |
| Size | 505.5 MB | 101.9 MB |
| Events in quadrant A | 7,055,587 | 709,868 |
| Events in quadrant B | 3,916,798 | 754,906 |
| Events in quadrant C | 2,886,982 | 718,261 |
| Events in quadrant D | 5,262,195 | 600,574 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25380 | 2 |
| B | 0 | 15914 | 2 |
| C | 0 | 13253 | 2 |
| D | 0 | 20313 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6464 | 385 | 5.956064% |
| B | 6464 | 127 | 1.964728% |
| C | 6464 | 24 | 0.371287% |
| D | 6464 | 662 | 10.241337% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7604 | 6464 | 175 | 175 | 2.30% | 2.71% |  |
| B | 7604 | 6465 | 38 | 38 | 0.50% | 0.59% |  |
| C | 7604 | 6465 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7604 | 6465 | 606 | 606 | 7.97% | 9.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3801205 | 24671.4 | 737 | 724 | 154.0 |
| A | 9 | 191 | 362908 | 2351.17 | 737 | 724 | 154.0 |
| A | 9 | 240 | 21545 | 135.16 | 737 | 724 | 154.0 |
| B | 4 | 171 | 376663 | 2553.74 | 746 | 724 | 147.2 |
| B | 0 | 200 | 236771 | 1603.46 | 746 | 724 | 147.2 |
| B | 0 | 190 | 216591 | 1466.38 | 746 | 724 | 147.2 |
| C | 3 | 233 | 19685 | 109.3 | 730 | 735 | 173.4 |
| C | 12 | 250 | 6638 | 34.05 | 730 | 735 | 173.4 |
| C | 1 | 3 | 5914 | 29.87 | 730 | 735 | 173.4 |
| D | 2 | 165 | 1097878 | 6263.31 | 695 | 672 | 175.2 |
| D | 12 | 2 | 882790 | 5035.5 | 695 | 672 | 175.2 |
| D | 12 | 233 | 231001 | 1314.81 | 695 | 672 | 175.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

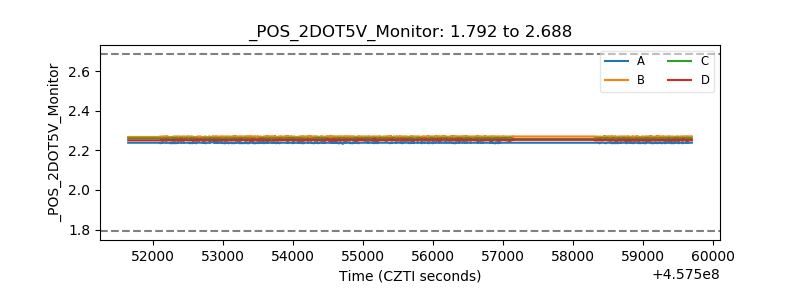

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
