| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T25_9000006324_47378cztM0_level2.fits | modeM0/AS1A13_093T25_9000006324_47378cztM0_level2_quad_clean.evt |
| Size (bytes) | 668,162,880 | 120,104,640 |
| Size | 637.2 MB | 114.5 MB |
| Events in quadrant A | 8,437,375 | 826,618 |
| Events in quadrant B | 4,409,512 | 858,033 |
| Events in quadrant C | 3,695,817 | 813,380 |
| Events in quadrant D | 7,580,246 | 590,822 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30937 | 3 |
| B | 0 | 18406 | 0 |
| C | 0 | 16725 | 0 |
| D | 0 | 28198 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7878 | 267 | 3.389185% |
| B | 7878 | 151 | 1.916730% |
| C | 7878 | 47 | 0.596598% |
| D | 7878 | 1747 | 22.175679% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7878 | 7878 | 61 | 61 | 0.77% | 0.77% |  |
| B | 7878 | 7878 | 49 | 49 | 0.62% | 0.62% |  |
| C | 7878 | 7878 | 9 | 9 | 0.11% | 0.11% |  |
| D | 7877 | 7877 | 1602 | 1602 | 20.34% | 20.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3816229 | 20229.16 | 896 | 876 | 188.6 |
| A | 15 | 235 | 823185 | 4359.92 | 896 | 876 | 188.6 |
| A | 9 | 191 | 285379 | 1508.45 | 896 | 876 | 188.6 |
| B | 4 | 171 | 597264 | 3333.2 | 895 | 867 | 178.9 |
| B | 5 | 32 | 104696 | 580.29 | 895 | 867 | 178.9 |
| B | 5 | 172 | 41499 | 227.09 | 895 | 867 | 178.9 |
| C | 0 | 207 | 169222 | 805.43 | 879 | 883 | 209.0 |
| C | 3 | 233 | 54878 | 258.34 | 879 | 883 | 209.0 |
| C | 1 | 3 | 35605 | 166.13 | 879 | 883 | 209.0 |
| D | 12 | 2 | 4330557 | 22973.19 | 740 | 718 | 188.5 |
| D | 2 | 249 | 112074 | 590.83 | 740 | 718 | 188.5 |
| D | 12 | 128 | 111839 | 589.58 | 740 | 718 | 188.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

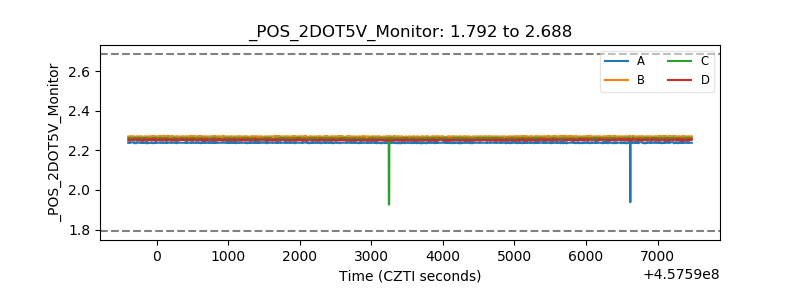

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
