| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T25_9000006324_47385cztM0_level2.fits | modeM0/AS1A13_093T25_9000006324_47385cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,535,360 | 105,816,960 |
| Size | 511.7 MB | 100.9 MB |
| Events in quadrant A | 6,976,678 | 709,915 |
| Events in quadrant B | 3,728,028 | 743,988 |
| Events in quadrant C | 3,034,003 | 707,951 |
| Events in quadrant D | 5,609,000 | 580,561 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25261 | 2 |
| B | 0 | 15539 | 2 |
| C | 0 | 13743 | 2 |
| D | 0 | 21267 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6613 | 372 | 5.625284% |
| B | 6614 | 128 | 1.935289% |
| C | 6614 | 42 | 0.635017% |
| D | 6614 | 927 | 14.015724% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7603 | 6613 | 70 | 70 | 0.92% | 1.06% |  |
| B | 7604 | 6614 | 24 | 24 | 0.32% | 0.36% |  |
| C | 7604 | 6614 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7604 | 6614 | 854 | 854 | 11.23% | 12.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3845432 | 24161.29 | 757 | 741 | 159.1 |
| A | 9 | 191 | 91265 | 568.88 | 757 | 741 | 159.1 |
| A | 15 | 235 | 75265 | 468.33 | 757 | 741 | 159.1 |
| B | 12 | 3 | 229511 | 1520.66 | 758 | 735 | 150.4 |
| B | 0 | 200 | 127126 | 840.11 | 758 | 735 | 150.4 |
| B | 5 | 255 | 101561 | 670.18 | 758 | 735 | 150.4 |
| C | 0 | 207 | 41966 | 232.13 | 745 | 750 | 177.6 |
| C | 9 | 237 | 30376 | 166.85 | 745 | 750 | 177.6 |
| C | 12 | 249 | 29116 | 159.76 | 745 | 750 | 177.6 |
| D | 12 | 2 | 2057612 | 11512.22 | 699 | 677 | 178.7 |
| D | 2 | 249 | 346199 | 1933.81 | 699 | 677 | 178.7 |
| D | 12 | 33 | 190759 | 1063.85 | 699 | 677 | 178.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

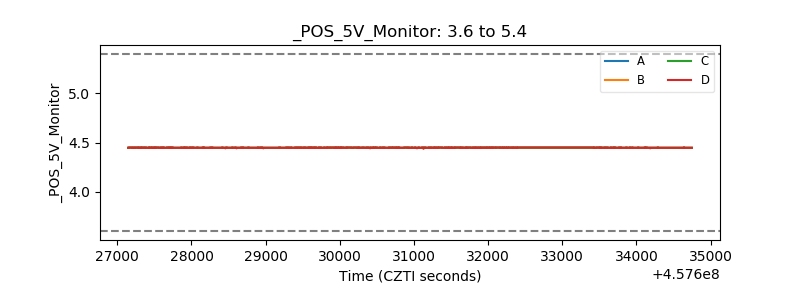

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
