| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T25_9000006324_47396cztM0_level2.fits | modeM0/AS1A13_093T25_9000006324_47396cztM0_level2_quad_clean.evt |
| Size (bytes) | 886,544,640 | 189,858,240 |
| Size | 845.5 MB | 181.1 MB |
| Events in quadrant A | 11,626,724 | 1,252,081 |
| Events in quadrant B | 7,062,614 | 1,258,771 |
| Events in quadrant C | 6,761,229 | 1,245,930 |
| Events in quadrant D | 6,420,892 | 1,146,846 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 1 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44064 | 1307 |
| B | 0 | 29880 | 536 |
| C | 0 | 29409 | 799 |
| D | 0 | 28476 | 559 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 251 | 3 |
| B | 0 | 256 | 4 |
| C | 0 | 256 | 2 |
| D | 0 | 255 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12130 | 524 | 4.319868% |
| B | 12257 | 881 | 7.187729% |
| C | 12194 | 333 | 2.730851% |
| D | 12256 | 339 | 2.765992% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13454 | 12342 | 19 | 19 | 0.14% | 0.15% |  |
| B | 13454 | 12401 | 511 | 511 | 3.80% | 4.12% |  |
| C | 13455 | 12387 | 120 | 120 | 0.89% | 0.97% |  |
| D | 13455 | 12415 | 121 | 121 | 0.90% | 0.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 6075492 | 20976.92 | 1383 | 1351 | 289.6 |
| A | 9 | 191 | 131097 | 448.08 | 1383 | 1351 | 289.6 |
| A | 15 | 235 | 45630 | 152.92 | 1383 | 1351 | 289.6 |
| B | 5 | 32 | 1403410 | 5148.87 | 1371 | 1325 | 272.3 |
| B | 4 | 171 | 50663 | 181.18 | 1371 | 1325 | 272.3 |
| B | 12 | 48 | 43901 | 156.35 | 1371 | 1325 | 272.3 |
| C | 0 | 207 | 1233331 | 3798.79 | 1370 | 1376 | 324.3 |
| C | 3 | 233 | 134111 | 409.29 | 1370 | 1376 | 324.3 |
| C | 10 | 20 | 27402 | 80.25 | 1370 | 1376 | 324.3 |
| D | 2 | 249 | 516523 | 1474.38 | 1380 | 1334 | 349.4 |
| D | 2 | 165 | 317672 | 905.3 | 1380 | 1334 | 349.4 |
| D | 11 | 224 | 102806 | 290.39 | 1380 | 1334 | 349.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

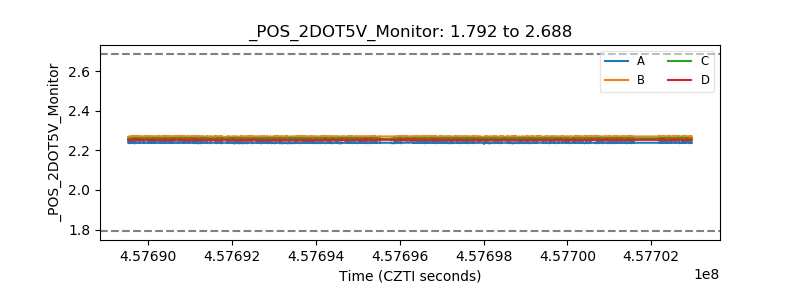

| +2.5 Volts monitor |  |

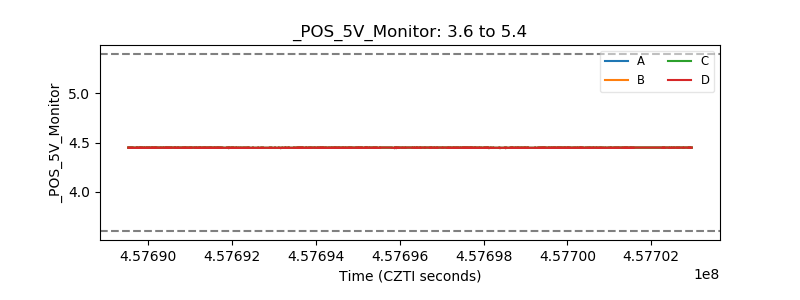

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
