| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006326_47405cztM0_level2.fits | modeM0/AS1A13_053T01_9000006326_47405cztM0_level2_quad_clean.evt |
| Size (bytes) | 588,024,000 | 108,743,040 |
| Size | 560.8 MB | 103.7 MB |
| Events in quadrant A | 7,038,992 | 731,071 |
| Events in quadrant B | 3,354,562 | 771,368 |
| Events in quadrant C | 3,060,667 | 742,752 |
| Events in quadrant D | 7,774,484 | 564,061 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25445 | 4 |
| B | 0 | 14876 | 2 |
| C | 0 | 14262 | 2 |
| D | 0 | 27976 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6940 | 322 | 4.639769% |
| B | 6941 | 75 | 1.080536% |
| C | 6941 | 16 | 0.230514% |
| D | 6941 | 1430 | 20.602219% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8930 | 6942 | 85 | 85 | 0.95% | 1.22% |  |
| B | 8931 | 6943 | 7 | 7 | 0.08% | 0.10% |  |
| C | 8931 | 6943 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8931 | 6942 | 1406 | 1406 | 15.74% | 20.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3834094 | 24511.7 | 756 | 740 | 156.4 |
| A | 9 | 191 | 273127 | 1741.73 | 756 | 740 | 156.4 |
| A | 3 | 137 | 8737 | 51.14 | 756 | 740 | 156.4 |
| B | 4 | 170 | 153084 | 1019.75 | 766 | 740 | 149.4 |
| B | 5 | 255 | 92815 | 616.33 | 766 | 740 | 149.4 |
| B | 12 | 48 | 27319 | 177.91 | 766 | 740 | 149.4 |
| C | 0 | 207 | 74323 | 413.04 | 760 | 762 | 178.1 |
| C | 12 | 249 | 8722 | 44.7 | 760 | 762 | 178.1 |
| C | 12 | 2 | 8200 | 41.76 | 760 | 762 | 178.1 |
| D | 2 | 165 | 4597343 | 26788.15 | 686 | 663 | 171.6 |
| D | 2 | 249 | 391552 | 2277.99 | 686 | 663 | 171.6 |
| D | 13 | 23 | 80052 | 462.66 | 686 | 663 | 171.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

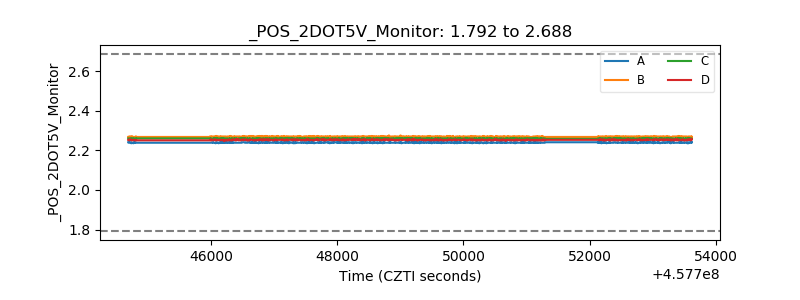

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
