| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006326_47414cztM0_level2.fits | modeM0/AS1A13_053T01_9000006326_47414cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,061,271,360 | 236,831,040 |
| Size | 1012.1 MB | 225.9 MB |
| Events in quadrant A | 15,807,025 | 1,549,560 |
| Events in quadrant B | 7,339,000 | 1,603,661 |
| Events in quadrant C | 7,377,768 | 1,551,286 |
| Events in quadrant D | 7,609,402 | 1,437,662 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 57149 | 3 |
| B | 0 | 31706 | 3 |
| C | 0 | 32770 | 3 |
| D | 0 | 33667 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 304 | 0 |
| B | 0 | 304 | 0 |
| C | 0 | 304 | 0 |
| D | 0 | 304 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14895 | 708 | 4.753273% |
| B | 14896 | 298 | 2.000537% |
| C | 14896 | 324 | 2.175081% |
| D | 14896 | 316 | 2.121375% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17499 | 14895 | 152 | 152 | 0.87% | 1.02% |  |
| B | 17500 | 14896 | 43 | 43 | 0.25% | 0.29% |  |
| C | 17500 | 14896 | 160 | 160 | 0.91% | 1.07% |  |
| D | 17500 | 14896 | 134 | 134 | 0.77% | 0.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8114674 | 23841.3 | 1637 | 1602 | 340.3 |
| A | 9 | 191 | 1298563 | 3811.29 | 1637 | 1602 | 340.3 |
| A | 10 | 255 | 22090 | 60.21 | 1637 | 1602 | 340.3 |
| B | 5 | 255 | 242730 | 755.83 | 1644 | 1590 | 319.0 |
| B | 0 | 200 | 85388 | 262.66 | 1644 | 1590 | 319.0 |
| B | 14 | 167 | 68003 | 208.16 | 1644 | 1590 | 319.0 |
| C | 12 | 2 | 596253 | 1562.8 | 1625 | 1628 | 380.5 |
| C | 0 | 207 | 381609 | 998.67 | 1625 | 1628 | 380.5 |
| C | 3 | 233 | 58294 | 148.93 | 1625 | 1628 | 380.5 |
| D | 2 | 249 | 521120 | 1286.45 | 1627 | 1573 | 403.9 |
| D | 12 | 33 | 142053 | 347.84 | 1627 | 1573 | 403.9 |
| D | 5 | 235 | 137981 | 337.76 | 1627 | 1573 | 403.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

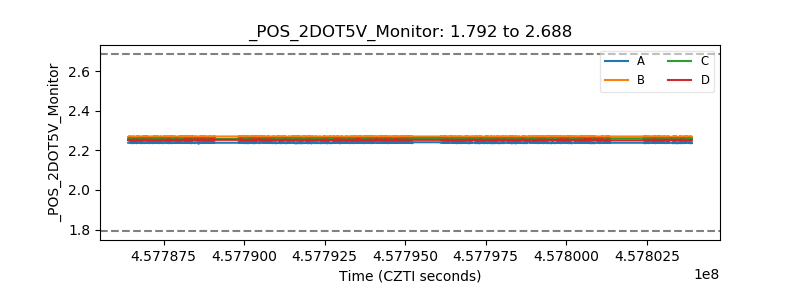

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
