| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006326_47421cztM0_level2.fits | modeM0/AS1A13_053T01_9000006326_47421cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,534,400 | 124,424,640 |
| Size | 508.8 MB | 118.7 MB |
| Events in quadrant A | 7,745,717 | 818,931 |
| Events in quadrant B | 3,938,202 | 846,673 |
| Events in quadrant C | 3,560,410 | 815,665 |
| Events in quadrant D | 3,901,090 | 744,345 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28180 | 0 |
| B | 0 | 17201 | 0 |
| C | 0 | 16260 | 0 |
| D | 0 | 17403 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7790 | 278 | 3.568678% |
| B | 7790 | 150 | 1.925546% |
| C | 7790 | 31 | 0.397946% |
| D | 7791 | 103 | 1.322038% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7790 | 7790 | 137 | 137 | 1.76% | 1.76% |  |
| B | 7790 | 7790 | 64 | 64 | 0.82% | 0.82% |  |
| C | 7790 | 7790 | 16 | 16 | 0.21% | 0.21% |  |
| D | 7791 | 7791 | 82 | 82 | 1.05% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3856692 | 21592.27 | 852 | 832 | 178.6 |
| A | 9 | 191 | 596653 | 3336.51 | 852 | 832 | 178.6 |
| A | 3 | 137 | 9975 | 51.2 | 852 | 832 | 178.6 |
| B | 5 | 32 | 284122 | 1676.9 | 854 | 825 | 168.9 |
| B | 5 | 255 | 182081 | 1072.9 | 854 | 825 | 168.9 |
| B | 0 | 200 | 23839 | 136.23 | 854 | 825 | 168.9 |
| C | 12 | 250 | 67103 | 330.92 | 853 | 856 | 200.2 |
| C | 0 | 207 | 59285 | 291.87 | 853 | 856 | 200.2 |
| C | 1 | 3 | 55122 | 271.07 | 853 | 856 | 200.2 |
| D | 2 | 249 | 451367 | 2136.55 | 846 | 816 | 210.9 |
| D | 2 | 165 | 108227 | 509.35 | 846 | 816 | 210.9 |
| D | 2 | 234 | 40068 | 186.14 | 846 | 816 | 210.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

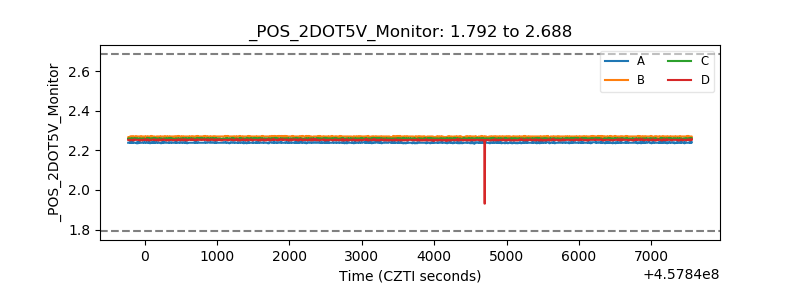

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
