| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006326_47433cztM0_level2.fits | modeM0/AS1A13_053T01_9000006326_47433cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,346,560 | 108,296,640 |
| Size | 449.5 MB | 103.3 MB |
| Events in quadrant A | 6,901,594 | 701,029 |
| Events in quadrant B | 3,142,416 | 754,126 |
| Events in quadrant C | 3,390,902 | 711,782 |
| Events in quadrant D | 3,507,517 | 658,086 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24770 | 2 |
| B | 0 | 13852 | 2 |
| C | 0 | 14651 | 7 |
| D | 0 | 15096 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6513 | 439 | 6.740365% |
| B | 6513 | 58 | 0.890527% |
| C | 6512 | 95 | 1.458845% |
| D | 6512 | 97 | 1.489558% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7613 | 6515 | 216 | 216 | 2.84% | 3.32% |  |
| B | 7613 | 6515 | 15 | 15 | 0.20% | 0.23% |  |
| C | 7612 | 6514 | 68 | 68 | 0.89% | 1.04% |  |
| D | 7612 | 6514 | 50 | 50 | 0.66% | 0.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3690411 | 24925.03 | 715 | 699 | 148.0 |
| A | 9 | 191 | 416956 | 2811.93 | 715 | 699 | 148.0 |
| A | 13 | 248 | 25979 | 170.77 | 715 | 699 | 148.0 |
| B | 5 | 32 | 133894 | 943.24 | 730 | 709 | 141.2 |
| B | 12 | 48 | 29722 | 205.48 | 730 | 709 | 141.2 |
| B | 0 | 198 | 26636 | 183.62 | 730 | 709 | 141.2 |
| C | 12 | 2 | 515802 | 3092.96 | 713 | 714 | 166.5 |
| C | 3 | 233 | 66416 | 394.52 | 713 | 714 | 166.5 |
| C | 1 | 3 | 12351 | 69.88 | 713 | 714 | 166.5 |
| D | 2 | 249 | 334047 | 1885.57 | 711 | 688 | 176.8 |
| D | 13 | 84 | 126811 | 713.39 | 711 | 688 | 176.8 |
| D | 11 | 192 | 103444 | 581.22 | 711 | 688 | 176.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

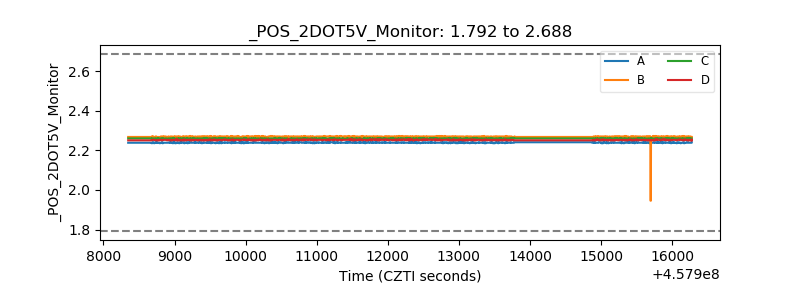

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
