| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006326_47435cztM0_level2.fits | modeM0/AS1A13_053T01_9000006326_47435cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,382,400 | 119,770,560 |
| Size | 524.9 MB | 114.2 MB |
| Events in quadrant A | 7,716,916 | 785,540 |
| Events in quadrant B | 3,618,402 | 823,238 |
| Events in quadrant C | 4,356,096 | 774,376 |
| Events in quadrant D | 4,096,226 | 718,260 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28283 | 2 |
| B | 0 | 16011 | 2 |
| C | 0 | 18309 | 2 |
| D | 0 | 17719 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7551 | 373 | 4.939743% |
| B | 7551 | 128 | 1.695140% |
| C | 7551 | 304 | 4.025957% |
| D | 7551 | 215 | 2.847305% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7761 | 7553 | 94 | 94 | 1.21% | 1.24% |  |
| B | 7761 | 7553 | 7 | 7 | 0.09% | 0.09% |  |
| C | 7761 | 7553 | 194 | 194 | 2.50% | 2.57% |  |
| D | 7761 | 7553 | 117 | 117 | 1.51% | 1.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3958703 | 23008.65 | 827 | 807 | 172.0 |
| A | 9 | 191 | 559585 | 3248.37 | 827 | 807 | 172.0 |
| A | 3 | 137 | 9878 | 52.73 | 827 | 807 | 172.0 |
| B | 5 | 32 | 167690 | 1020.57 | 836 | 810 | 163.5 |
| B | 0 | 198 | 44297 | 265.95 | 836 | 810 | 163.5 |
| B | 4 | 171 | 31388 | 187.0 | 836 | 810 | 163.5 |
| C | 12 | 2 | 1105793 | 5791.98 | 822 | 824 | 190.8 |
| C | 1 | 3 | 15693 | 77.94 | 822 | 824 | 190.8 |
| C | 3 | 233 | 10591 | 51.2 | 822 | 824 | 190.8 |
| D | 2 | 249 | 418192 | 2039.63 | 822 | 795 | 204.6 |
| D | 2 | 165 | 290916 | 1417.69 | 822 | 795 | 204.6 |
| D | 12 | 128 | 132062 | 641.44 | 822 | 795 | 204.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

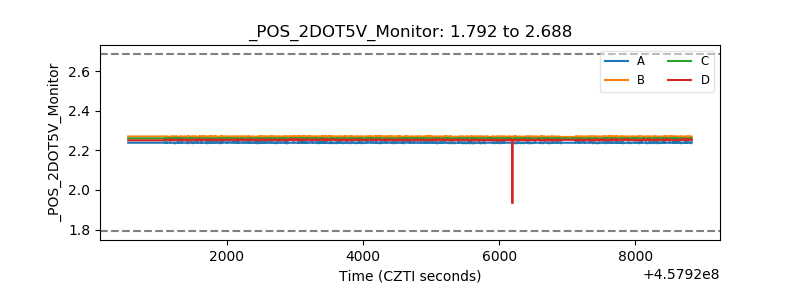

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
