| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006326_47440cztM0_level2.fits | modeM0/AS1A13_053T01_9000006326_47440cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,234,445,760 | 281,710,080 |
| Size | 1.1 GB | 268.7 MB |
| Events in quadrant A | 17,178,346 | 1,851,017 |
| Events in quadrant B | 9,139,608 | 1,899,951 |
| Events in quadrant C | 7,984,957 | 1,859,722 |
| Events in quadrant D | 10,004,097 | 1,680,057 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 63108 | 3 |
| B | 0 | 39697 | 1 |
| C | 0 | 37056 | 1 |
| D | 0 | 42590 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 364 | 0 |
| B | 0 | 364 | 0 |
| C | 0 | 362 | 0 |
| D | 0 | 362 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17960 | 501 | 2.789532% |
| B | 17961 | 402 | 2.238183% |
| C | 17961 | 165 | 0.918657% |
| D | 17961 | 406 | 2.260453% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18121 | 17962 | 107 | 107 | 0.59% | 0.60% |  |
| B | 18121 | 17962 | 128 | 128 | 0.71% | 0.71% |  |
| C | 18121 | 17962 | 31 | 31 | 0.17% | 0.17% |  |
| D | 18121 | 17962 | 256 | 256 | 1.41% | 1.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8846420 | 21741.49 | 1959 | 1914 | 406.8 |
| A | 9 | 191 | 723101 | 1772.82 | 1959 | 1914 | 406.8 |
| A | 3 | 137 | 23404 | 52.83 | 1959 | 1914 | 406.8 |
| B | 5 | 32 | 1041782 | 2706.82 | 1958 | 1889 | 384.2 |
| B | 5 | 171 | 74179 | 188.17 | 1958 | 1889 | 384.2 |
| B | 0 | 198 | 53603 | 134.61 | 1958 | 1889 | 384.2 |
| C | 3 | 233 | 323568 | 706.19 | 1945 | 1955 | 455.4 |
| C | 0 | 207 | 32069 | 66.12 | 1945 | 1955 | 455.4 |
| C | 13 | 61 | 12932 | 24.1 | 1945 | 1955 | 455.4 |
| D | 2 | 165 | 1607999 | 3308.46 | 1937 | 1877 | 485.5 |
| D | 2 | 249 | 430183 | 882.27 | 1937 | 1877 | 485.5 |
| D | 12 | 233 | 328277 | 672.35 | 1937 | 1877 | 485.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

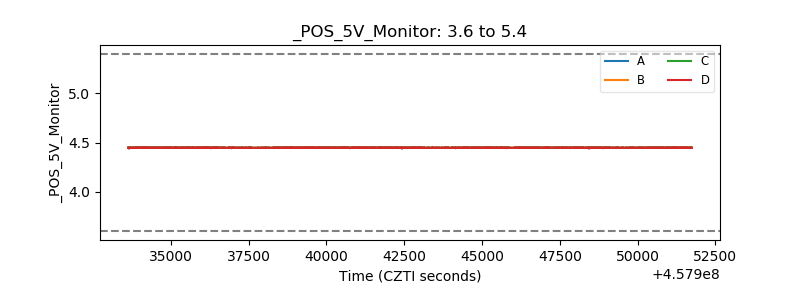

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
