| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_053T01_9000006326_47444cztM0_level2.fits | modeM0/AS1A13_053T01_9000006326_47444cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,878,400 | 108,506,880 |
| Size | 507.2 MB | 103.5 MB |
| Events in quadrant A | 7,217,464 | 727,899 |
| Events in quadrant B | 3,309,272 | 766,689 |
| Events in quadrant C | 3,035,037 | 740,576 |
| Events in quadrant D | 5,620,250 | 595,222 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26021 | 2 |
| B | 0 | 14360 | 2 |
| C | 0 | 13713 | 2 |
| D | 0 | 21267 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6528 | 381 | 5.836397% |
| B | 6528 | 123 | 1.884191% |
| C | 6528 | 43 | 0.658701% |
| D | 6528 | 904 | 13.848039% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7673 | 6529 | 90 | 90 | 1.17% | 1.38% |  |
| B | 7673 | 6529 | 40 | 40 | 0.52% | 0.61% |  |
| C | 7673 | 6529 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7673 | 6528 | 818 | 818 | 10.66% | 12.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3990122 | 25820.05 | 747 | 732 | 154.5 |
| A | 9 | 191 | 288045 | 1859.54 | 747 | 732 | 154.5 |
| A | 9 | 240 | 23188 | 145.34 | 747 | 732 | 154.5 |
| B | 5 | 32 | 98499 | 670.46 | 751 | 729 | 145.8 |
| B | 5 | 255 | 87012 | 591.69 | 751 | 729 | 145.8 |
| B | 0 | 198 | 47359 | 319.77 | 751 | 729 | 145.8 |
| C | 3 | 233 | 85436 | 494.68 | 737 | 741 | 171.2 |
| C | 1 | 3 | 44054 | 252.98 | 737 | 741 | 171.2 |
| C | 8 | 222 | 21955 | 123.9 | 737 | 741 | 171.2 |
| D | 2 | 165 | 1136703 | 6466.59 | 708 | 684 | 175.7 |
| D | 6 | 112 | 1039422 | 5912.83 | 708 | 684 | 175.7 |
| D | 12 | 2 | 285816 | 1623.06 | 708 | 684 | 175.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

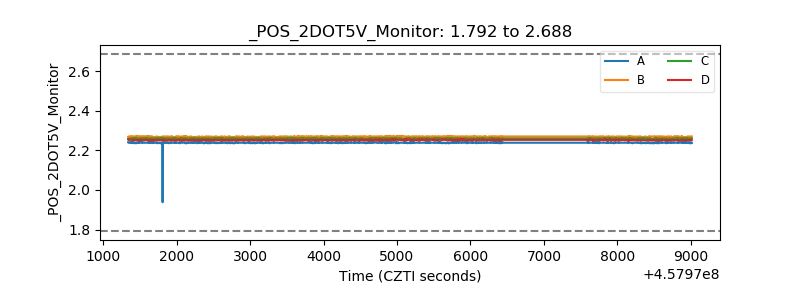

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
