| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_089T01_9000006330_47447cztM0_level2.fits | modeM0/AS1A13_089T01_9000006330_47447cztM0_level2_quad_clean.evt |
| Size (bytes) | 265,135,680 | 63,089,280 |
| Size | 252.9 MB | 60.2 MB |
| Events in quadrant A | 3,847,342 | 408,728 |
| Events in quadrant B | 2,021,039 | 439,246 |
| Events in quadrant C | 1,768,888 | 417,201 |
| Events in quadrant D | 1,887,135 | 382,404 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 0 |
| B | 0 | 76 | 0 |
| C | 0 | 76 | 0 |
| D | 0 | 76 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13898 | 1 |
| B | 0 | 8407 | 1 |
| C | 0 | 7833 | 1 |
| D | 0 | 8256 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3717 | 195 | 5.246166% |
| B | 3717 | 67 | 1.802529% |
| C | 3717 | 25 | 0.672585% |
| D | 3717 | 26 | 0.699489% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4867 | 3718 | 73 | 73 | 1.50% | 1.96% |  |
| B | 4867 | 3718 | 5 | 5 | 0.10% | 0.13% |  |
| C | 4867 | 3718 | 2 | 2 | 0.04% | 0.05% |  |
| D | 4867 | 3718 | 20 | 20 | 0.41% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2085706 | 22462.53 | 438 | 429 | 92.8 |
| A | 9 | 191 | 60071 | 642.46 | 438 | 429 | 92.8 |
| A | 13 | 254 | 5426 | 53.83 | 438 | 429 | 92.8 |
| B | 5 | 32 | 134930 | 1517.34 | 444 | 430 | 88.6 |
| B | 12 | 3 | 32115 | 357.45 | 444 | 430 | 88.6 |
| B | 4 | 171 | 21764 | 240.68 | 444 | 430 | 88.6 |
| C | 1 | 3 | 43470 | 410.13 | 437 | 440 | 104.9 |
| C | 3 | 233 | 11941 | 109.62 | 437 | 440 | 104.9 |
| C | 0 | 207 | 7545 | 67.72 | 437 | 440 | 104.9 |
| D | 2 | 249 | 99020 | 896.04 | 433 | 419 | 110.0 |
| D | 8 | 176 | 61404 | 554.2 | 433 | 419 | 110.0 |
| D | 11 | 192 | 24127 | 215.45 | 433 | 419 | 110.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

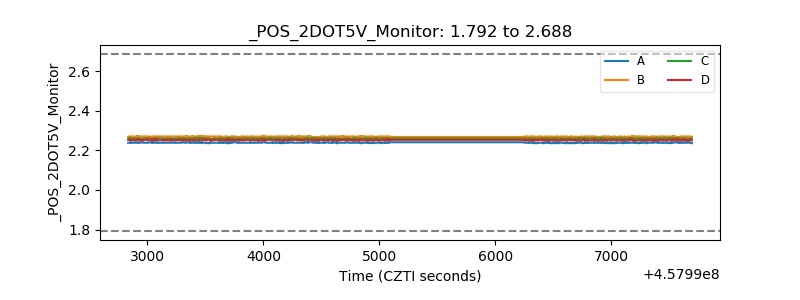

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
