| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_089T01_9000006330_47448cztM0_level2.fits | modeM0/AS1A13_089T01_9000006330_47448cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,245,760 | 108,149,760 |
| Size | 440.8 MB | 103.1 MB |
| Events in quadrant A | 6,792,886 | 700,518 |
| Events in quadrant B | 3,331,638 | 746,094 |
| Events in quadrant C | 2,932,938 | 718,734 |
| Events in quadrant D | 3,541,276 | 649,493 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24485 | 3 |
| B | 0 | 14405 | 3 |
| C | 0 | 13565 | 3 |
| D | 0 | 15376 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6595 | 316 | 4.791509% |
| B | 6595 | 94 | 1.425322% |
| C | 6595 | 26 | 0.394238% |
| D | 6595 | 135 | 2.047005% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7550 | 6597 | 96 | 96 | 1.27% | 1.46% |  |
| B | 7550 | 6597 | 14 | 14 | 0.19% | 0.21% |  |
| C | 7550 | 6597 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7550 | 6597 | 98 | 98 | 1.30% | 1.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3844639 | 25056.31 | 735 | 717 | 153.4 |
| A | 9 | 191 | 95487 | 617.75 | 735 | 717 | 153.4 |
| A | 3 | 137 | 8702 | 52.05 | 735 | 717 | 153.4 |
| B | 5 | 32 | 188453 | 1251.53 | 752 | 728 | 150.0 |
| B | 0 | 198 | 44953 | 294.84 | 752 | 728 | 150.0 |
| B | 12 | 3 | 33055 | 215.52 | 752 | 728 | 150.0 |
| C | 3 | 233 | 18871 | 103.89 | 739 | 743 | 174.5 |
| C | 0 | 207 | 13139 | 71.04 | 739 | 743 | 174.5 |
| C | 1 | 3 | 11227 | 60.08 | 739 | 743 | 174.5 |
| D | 2 | 249 | 466639 | 2512.05 | 728 | 703 | 185.5 |
| D | 12 | 128 | 96070 | 514.16 | 728 | 703 | 185.5 |
| D | 8 | 176 | 88697 | 474.41 | 728 | 703 | 185.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

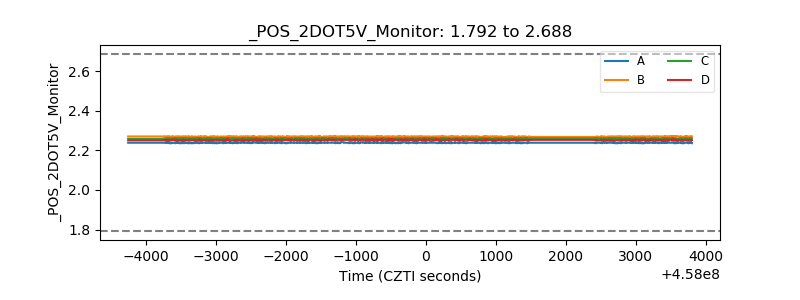

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
