| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_089T01_9000006330_47449cztM0_level2.fits | modeM0/AS1A13_089T01_9000006330_47449cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,540,480 | 116,256,960 |
| Size | 478.3 MB | 110.9 MB |
| Events in quadrant A | 7,460,426 | 750,367 |
| Events in quadrant B | 3,833,087 | 787,558 |
| Events in quadrant C | 3,229,036 | 772,412 |
| Events in quadrant D | 3,480,178 | 704,938 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27017 | 3 |
| B | 0 | 16419 | 3 |
| C | 0 | 15000 | 3 |
| D | 0 | 15763 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7249 | 358 | 4.938612% |
| B | 7250 | 210 | 2.896552% |
| C | 7250 | 33 | 0.455172% |
| D | 7250 | 56 | 0.772414% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8819 | 7252 | 35 | 35 | 0.40% | 0.48% |  |
| B | 8820 | 7253 | 63 | 63 | 0.71% | 0.87% |  |
| C | 8820 | 7253 | 3 | 3 | 0.03% | 0.04% |  |
| D | 8820 | 7253 | 27 | 27 | 0.31% | 0.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4078052 | 24277.98 | 808 | 789 | 167.9 |
| A | 9 | 191 | 221027 | 1311.4 | 808 | 789 | 167.9 |
| A | 13 | 248 | 18128 | 103.24 | 808 | 789 | 167.9 |
| B | 5 | 32 | 360288 | 2198.48 | 823 | 797 | 163.5 |
| B | 0 | 200 | 78742 | 476.67 | 823 | 797 | 163.5 |
| B | 0 | 198 | 45599 | 273.99 | 823 | 797 | 163.5 |
| C | 1 | 3 | 25623 | 128.48 | 815 | 818 | 193.1 |
| C | 3 | 233 | 15727 | 77.22 | 815 | 818 | 193.1 |
| C | 12 | 250 | 9023 | 42.5 | 815 | 818 | 193.1 |
| D | 2 | 249 | 250430 | 1225.46 | 806 | 779 | 203.7 |
| D | 2 | 234 | 36185 | 173.8 | 806 | 779 | 203.7 |
| D | 8 | 176 | 31967 | 153.09 | 806 | 779 | 203.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

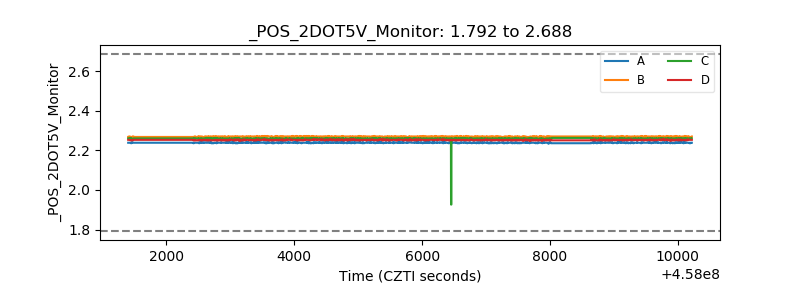

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
