| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_089T01_9000006330_47459cztM0_level2.fits | modeM0/AS1A13_089T01_9000006330_47459cztM0_level2_quad_clean.evt |
| Size (bytes) | 630,584,640 | 106,848,000 |
| Size | 601.4 MB | 101.9 MB |
| Events in quadrant A | 7,469,372 | 701,660 |
| Events in quadrant B | 4,467,526 | 726,687 |
| Events in quadrant C | 2,926,242 | 734,149 |
| Events in quadrant D | 7,984,501 | 626,217 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26525 | 2 |
| B | 0 | 17771 | 2 |
| C | 0 | 13217 | 2 |
| D | 0 | 28228 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6398 | 493 | 7.705533% |
| B | 6399 | 463 | 7.235506% |
| C | 6399 | 30 | 0.468823% |
| D | 6399 | 672 | 10.501641% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7573 | 6399 | 163 | 163 | 2.15% | 2.55% |  |
| B | 7574 | 6400 | 222 | 222 | 2.93% | 3.47% |  |
| C | 7574 | 6400 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7574 | 6400 | 689 | 689 | 9.10% | 10.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4109302 | 26938.13 | 736 | 720 | 152.5 |
| A | 9 | 191 | 373263 | 2442.6 | 736 | 720 | 152.5 |
| A | 14 | 235 | 56047 | 362.75 | 736 | 720 | 152.5 |
| B | 5 | 32 | 1199921 | 8373.98 | 731 | 711 | 143.2 |
| B | 0 | 198 | 135243 | 939.43 | 731 | 711 | 143.2 |
| B | 5 | 255 | 38383 | 263.06 | 731 | 711 | 143.2 |
| C | 3 | 233 | 10849 | 58.15 | 741 | 744 | 173.8 |
| C | 12 | 2 | 10367 | 55.38 | 741 | 744 | 173.8 |
| C | 0 | 207 | 7829 | 40.77 | 741 | 744 | 173.8 |
| D | 6 | 112 | 3244731 | 17969.32 | 720 | 697 | 180.5 |
| D | 2 | 165 | 803818 | 4448.64 | 720 | 697 | 180.5 |
| D | 2 | 249 | 577741 | 3196.36 | 720 | 697 | 180.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

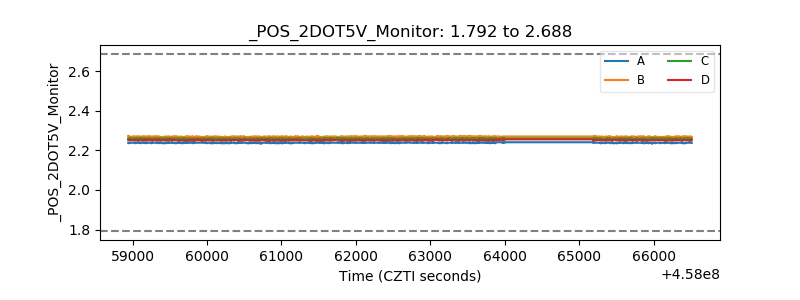

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
