| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_089T01_9000006330_47464cztM0_level2.fits | modeM0/AS1A13_089T01_9000006330_47464cztM0_level2_quad_clean.evt |
| Size (bytes) | 875,687,040 | 101,643,840 |
| Size | 835.1 MB | 96.9 MB |
| Events in quadrant A | 8,020,214 | 763,475 |
| Events in quadrant B | 4,598,219 | 794,533 |
| Events in quadrant C | 3,625,432 | 793,736 |
| Events in quadrant D | 15,585,515 | 199,976 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29132 | 2 |
| B | 0 | 18844 | 2 |
| C | 0 | 16180 | 2 |
| D | 0 | 51487 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7558 | 446 | 5.901032% |
| B | 7558 | 441 | 5.834877% |
| C | 7558 | 66 | 0.873247% |
| D | 7557 | 5653 | 74.804817% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7793 | 7561 | 68 | 68 | 0.87% | 0.90% |  |
| B | 7793 | 7561 | 192 | 192 | 2.46% | 2.54% |  |
| C | 7793 | 7561 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7791 | 7558 | 4915 | 4915 | 63.09% | 65.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4175661 | 23544.59 | 849 | 827 | 177.3 |
| A | 9 | 191 | 540217 | 3041.97 | 849 | 827 | 177.3 |
| A | 2 | 79 | 20685 | 111.99 | 849 | 827 | 177.3 |
| B | 5 | 32 | 979765 | 5737.35 | 853 | 825 | 170.6 |
| B | 0 | 198 | 108465 | 630.85 | 853 | 825 | 170.6 |
| B | 0 | 190 | 76594 | 444.07 | 853 | 825 | 170.6 |
| C | 3 | 233 | 211279 | 1032.27 | 855 | 858 | 203.8 |
| C | 0 | 207 | 52261 | 252.17 | 855 | 858 | 203.8 |
| C | 12 | 2 | 11511 | 52.26 | 855 | 858 | 203.8 |
| D | 2 | 165 | 13440393 | 101761.38 | 518 | 500 | 132.1 |
| D | 2 | 249 | 48223 | 361.34 | 518 | 500 | 132.1 |
| D | 2 | 234 | 24570 | 182.25 | 518 | 500 | 132.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

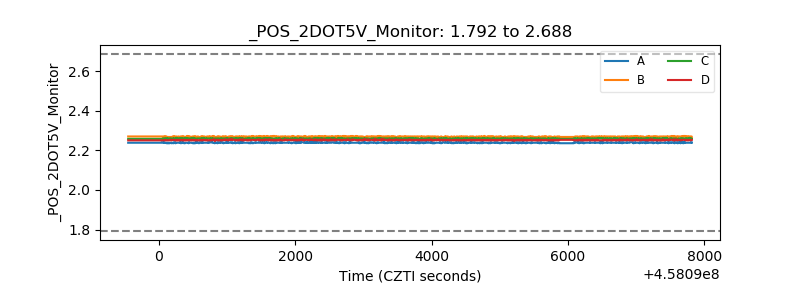

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
