| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_089T01_9000006330_47472cztM0_level2.fits | modeM0/AS1A13_089T01_9000006330_47472cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,104,320 | 91,751,040 |
| Size | 539.9 MB | 87.5 MB |
| Events in quadrant A | 6,430,915 | 635,524 |
| Events in quadrant B | 3,431,811 | 653,648 |
| Events in quadrant C | 2,737,027 | 636,286 |
| Events in quadrant D | 7,893,759 | 436,349 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23208 | 1 |
| B | 0 | 14210 | 1 |
| C | 0 | 12342 | 2 |
| D | 0 | 27529 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5959 | 267 | 4.480618% |
| B | 5960 | 208 | 3.489933% |
| C | 5959 | 49 | 0.822286% |
| D | 5959 | 1754 | 29.434469% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6984 | 5960 | 29 | 29 | 0.42% | 0.49% |  |
| B | 6985 | 5961 | 88 | 88 | 1.26% | 1.48% |  |
| C | 6984 | 5960 | 3 | 3 | 0.04% | 0.05% |  |
| D | 6984 | 5960 | 1531 | 1531 | 21.92% | 25.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3557846 | 25605.53 | 662 | 648 | 138.9 |
| A | 9 | 191 | 278477 | 1999.88 | 662 | 648 | 138.9 |
| A | 13 | 248 | 34546 | 244.01 | 662 | 648 | 138.9 |
| B | 5 | 32 | 549900 | 4228.41 | 660 | 639 | 129.9 |
| B | 0 | 198 | 96525 | 738.16 | 660 | 639 | 129.9 |
| B | 0 | 190 | 68462 | 522.12 | 660 | 639 | 129.9 |
| C | 3 | 233 | 74724 | 474.75 | 658 | 660 | 156.0 |
| C | 14 | 254 | 34391 | 216.22 | 658 | 660 | 156.0 |
| C | 6 | 247 | 21100 | 131.02 | 658 | 660 | 156.0 |
| D | 6 | 112 | 4728818 | 31699.32 | 592 | 573 | 149.2 |
| D | 14 | 34 | 399487 | 2674.42 | 592 | 573 | 149.2 |
| D | 12 | 233 | 133233 | 889.39 | 592 | 573 | 149.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

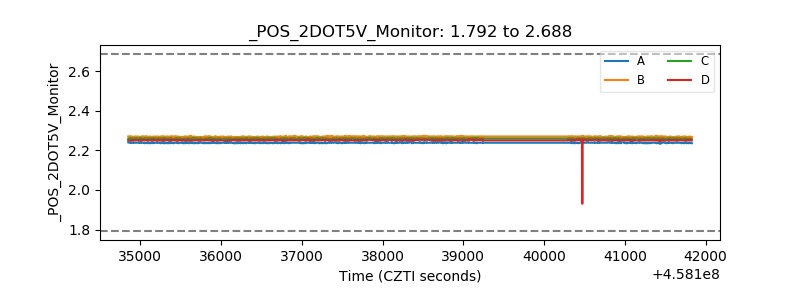

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
