| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_089T01_9000006330_47477cztM0_level2.fits | modeM0/AS1A13_089T01_9000006330_47477cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,681,920 | 109,647,360 |
| Size | 508.0 MB | 104.6 MB |
| Events in quadrant A | 7,040,095 | 709,293 |
| Events in quadrant B | 3,692,775 | 753,554 |
| Events in quadrant C | 3,456,096 | 728,853 |
| Events in quadrant D | 5,009,497 | 660,206 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25359 | 2 |
| B | 0 | 15534 | 3 |
| C | 0 | 15003 | 2 |
| D | 0 | 19560 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6712 | 324 | 4.827175% |
| B | 6711 | 188 | 2.801371% |
| C | 6711 | 39 | 0.581135% |
| D | 6711 | 84 | 1.251676% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7672 | 6713 | 117 | 117 | 1.53% | 1.74% |  |
| B | 7671 | 6712 | 74 | 74 | 0.96% | 1.10% |  |
| C | 7671 | 6712 | 17 | 17 | 0.22% | 0.25% |  |
| D | 7671 | 6712 | 50 | 50 | 0.65% | 0.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4023698 | 25950.66 | 744 | 728 | 155.0 |
| A | 9 | 191 | 129093 | 828.03 | 744 | 728 | 155.0 |
| A | 13 | 248 | 13381 | 81.62 | 744 | 728 | 155.0 |
| B | 5 | 32 | 535699 | 3563.12 | 756 | 733 | 150.1 |
| B | 0 | 198 | 66301 | 436.71 | 756 | 733 | 150.1 |
| B | 0 | 190 | 27425 | 177.78 | 756 | 733 | 150.1 |
| C | 3 | 233 | 338544 | 1913.02 | 747 | 750 | 176.6 |
| C | 0 | 207 | 150091 | 845.76 | 747 | 750 | 176.6 |
| C | 12 | 249 | 21150 | 115.53 | 747 | 750 | 176.6 |
| D | 11 | 192 | 1689408 | 9003.31 | 739 | 715 | 187.6 |
| D | 8 | 176 | 132556 | 702.91 | 739 | 715 | 187.6 |
| D | 2 | 165 | 111034 | 588.17 | 739 | 715 | 187.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

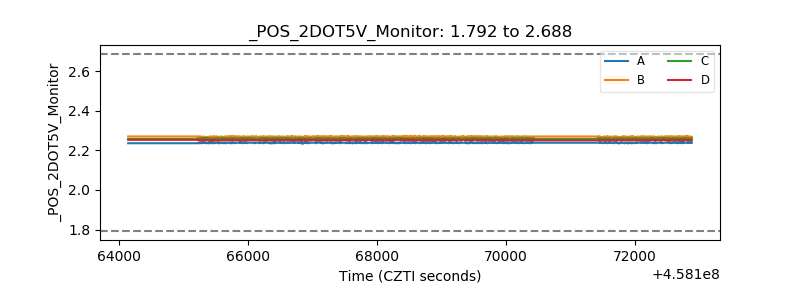

| +2.5 Volts monitor |  |

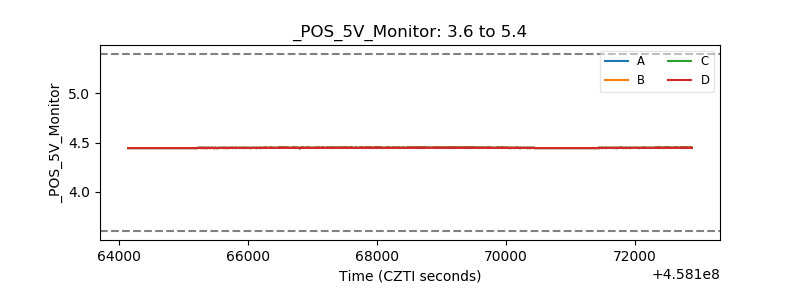

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
