| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_089T01_9000006330_47480cztM0_level2.fits | modeM0/AS1A13_089T01_9000006330_47480cztM0_level2_quad_clean.evt |
| Size (bytes) | 578,704,320 | 127,641,600 |
| Size | 551.9 MB | 121.7 MB |
| Events in quadrant A | 7,750,127 | 840,385 |
| Events in quadrant B | 4,789,958 | 859,975 |
| Events in quadrant C | 3,780,633 | 840,706 |
| Events in quadrant D | 4,479,882 | 765,736 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28389 | 0 |
| B | 0 | 19739 | 0 |
| C | 0 | 16983 | 0 |
| D | 0 | 18929 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8021 | 173 | 2.156838% |
| B | 8020 | 260 | 3.241895% |
| C | 8020 | 14 | 0.174564% |
| D | 8020 | 47 | 0.586035% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8021 | 8021 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8020 | 8020 | 124 | 124 | 1.55% | 1.55% |  |
| C | 8020 | 8020 | 2 | 2 | 0.02% | 0.02% |  |
| D | 8020 | 8020 | 36 | 36 | 0.45% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4141135 | 21561.56 | 917 | 893 | 192.0 |
| A | 9 | 191 | 57804 | 296.38 | 917 | 893 | 192.0 |
| A | 14 | 235 | 13991 | 68.21 | 917 | 893 | 192.0 |
| B | 5 | 32 | 499902 | 2724.17 | 913 | 882 | 183.2 |
| B | 0 | 200 | 447004 | 2435.4 | 913 | 882 | 183.2 |
| B | 0 | 190 | 124460 | 674.62 | 913 | 882 | 183.2 |
| C | 3 | 233 | 212995 | 985.45 | 904 | 908 | 215.2 |
| C | 0 | 207 | 21114 | 93.89 | 904 | 908 | 215.2 |
| C | 12 | 250 | 18913 | 83.66 | 904 | 908 | 215.2 |
| D | 11 | 192 | 731095 | 3198.8 | 897 | 870 | 228.3 |
| D | 2 | 249 | 110707 | 481.15 | 897 | 870 | 228.3 |
| D | 13 | 23 | 63084 | 272.53 | 897 | 870 | 228.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

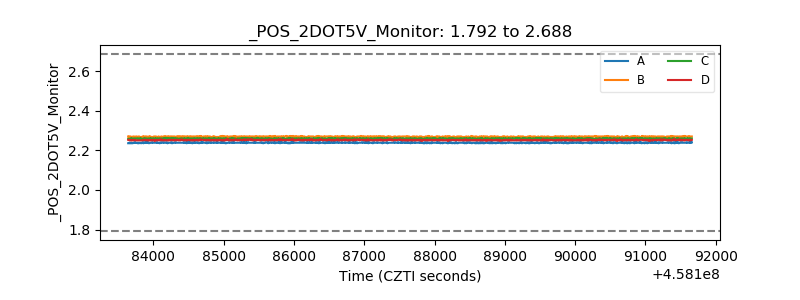

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
