| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_089T01_9000006330_47483cztM0_level2.fits | modeM0/AS1A13_089T01_9000006330_47483cztM0_level2_quad_clean.evt |
| Size (bytes) | 694,431,360 | 137,393,280 |
| Size | 662.3 MB | 131.0 MB |
| Events in quadrant A | 9,136,575 | 894,707 |
| Events in quadrant B | 6,364,151 | 887,576 |
| Events in quadrant C | 4,703,367 | 917,436 |
| Events in quadrant D | 4,802,574 | 834,051 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 182 | 0 |
| B | 0 | 182 | 0 |
| C | 0 | 182 | 0 |
| D | 0 | 182 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33648 | 2 |
| B | 0 | 25045 | 2 |
| C | 0 | 20286 | 2 |
| D | 0 | 20758 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9020 | 614 | 6.807095% |
| B | 9020 | 1005 | 11.141907% |
| C | 9020 | 269 | 2.982262% |
| D | 9021 | 304 | 3.369915% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9320 | 9022 | 9 | 9 | 0.10% | 0.10% |  |
| B | 9320 | 9022 | 306 | 306 | 3.28% | 3.39% |  |
| C | 9320 | 9022 | 60 | 60 | 0.64% | 0.67% |  |
| D | 9321 | 9023 | 81 | 81 | 0.87% | 0.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4584156 | 20794.84 | 1040 | 1015 | 220.4 |
| A | 9 | 191 | 404484 | 1830.64 | 1040 | 1015 | 220.4 |
| A | 15 | 235 | 112766 | 507.04 | 1040 | 1015 | 220.4 |
| B | 5 | 32 | 1233109 | 6006.83 | 1019 | 984 | 205.1 |
| B | 0 | 200 | 850081 | 4139.5 | 1019 | 984 | 205.1 |
| B | 5 | 172 | 119370 | 577.15 | 1019 | 984 | 205.1 |
| C | 0 | 207 | 529115 | 2161.12 | 1034 | 1039 | 244.4 |
| C | 3 | 233 | 96484 | 390.6 | 1034 | 1039 | 244.4 |
| C | 12 | 250 | 21257 | 82.74 | 1034 | 1039 | 244.4 |
| D | 2 | 249 | 452897 | 1729.37 | 1033 | 998 | 261.3 |
| D | 13 | 23 | 116163 | 440.72 | 1033 | 998 | 261.3 |
| D | 2 | 165 | 54447 | 204.54 | 1033 | 998 | 261.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

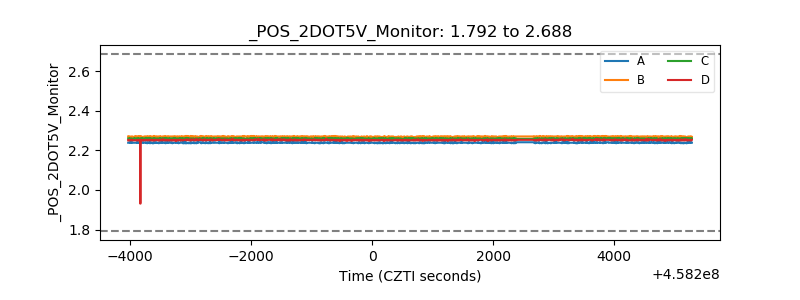

| +2.5 Volts monitor |  |

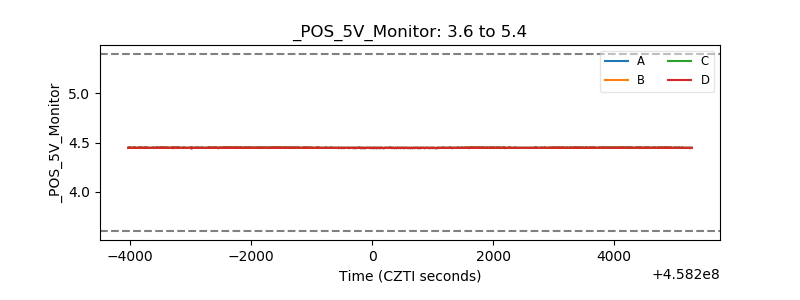

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
