| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_089T01_9000006330_47490cztM0_level2.fits | modeM0/AS1A13_089T01_9000006330_47490cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,313,920 | 108,253,440 |
| Size | 472.4 MB | 103.2 MB |
| Events in quadrant A | 7,102,317 | 708,841 |
| Events in quadrant B | 3,430,439 | 762,686 |
| Events in quadrant C | 3,032,619 | 725,825 |
| Events in quadrant D | 4,279,731 | 639,766 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25469 | 2 |
| B | 0 | 14410 | 2 |
| C | 0 | 13403 | 2 |
| D | 0 | 17127 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6316 | 359 | 5.683977% |
| B | 6317 | 103 | 1.630521% |
| C | 6317 | 47 | 0.744024% |
| D | 6316 | 351 | 5.557315% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7531 | 6317 | 146 | 146 | 1.94% | 2.31% |  |
| B | 7532 | 6318 | 25 | 25 | 0.33% | 0.40% |  |
| C | 7532 | 6318 | 15 | 15 | 0.20% | 0.24% |  |
| D | 7531 | 6317 | 260 | 260 | 3.45% | 4.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4044624 | 26449.28 | 730 | 715 | 152.9 |
| A | 9 | 191 | 149529 | 973.32 | 730 | 715 | 152.9 |
| A | 15 | 235 | 75380 | 488.35 | 730 | 715 | 152.9 |
| B | 0 | 200 | 163853 | 1139.28 | 739 | 716 | 143.2 |
| B | 0 | 186 | 85954 | 595.27 | 739 | 716 | 143.2 |
| B | 0 | 183 | 54204 | 373.54 | 739 | 716 | 143.2 |
| C | 12 | 2 | 102174 | 587.39 | 731 | 735 | 172.7 |
| C | 3 | 233 | 54279 | 310.05 | 731 | 735 | 172.7 |
| C | 0 | 207 | 19953 | 111.28 | 731 | 735 | 172.7 |
| D | 7 | 38 | 738933 | 4105.61 | 714 | 692 | 179.8 |
| D | 2 | 165 | 269706 | 1496.08 | 714 | 692 | 179.8 |
| D | 13 | 23 | 233313 | 1293.68 | 714 | 692 | 179.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

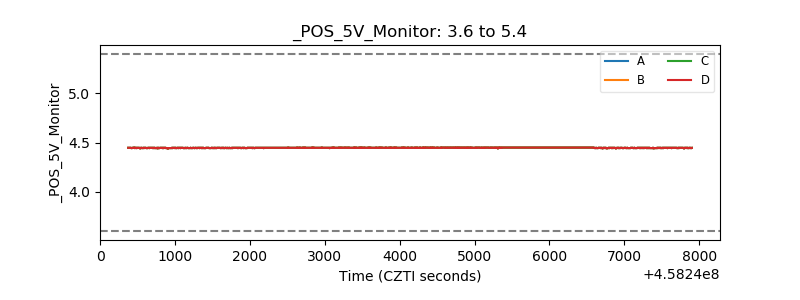

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
