| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_089T01_9000006330_47499cztM0_level2.fits | modeM0/AS1A13_089T01_9000006330_47499cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,068,480 | 111,769,920 |
| Size | 507.4 MB | 106.6 MB |
| Events in quadrant A | 7,380,630 | 732,840 |
| Events in quadrant B | 4,568,474 | 754,642 |
| Events in quadrant C | 3,154,361 | 739,117 |
| Events in quadrant D | 4,046,229 | 667,338 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27622 | 2 |
| B | 0 | 18173 | 2 |
| C | 0 | 14444 | 2 |
| D | 0 | 17000 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7038 | 334 | 4.745666% |
| B | 7038 | 339 | 4.816709% |
| C | 7037 | 60 | 0.852636% |
| D | 7037 | 206 | 2.927384% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7918 | 7039 | 18 | 18 | 0.23% | 0.26% |  |
| B | 7918 | 7039 | 144 | 144 | 1.82% | 2.05% |  |
| C | 7917 | 7038 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7917 | 7038 | 124 | 124 | 1.57% | 1.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4186007 | 24986.79 | 796 | 778 | 167.5 |
| A | 9 | 191 | 72896 | 430.56 | 796 | 778 | 167.5 |
| A | 13 | 248 | 34540 | 201.57 | 796 | 778 | 167.5 |
| B | 0 | 200 | 629302 | 3958.74 | 792 | 767 | 158.8 |
| B | 5 | 32 | 558482 | 3512.69 | 792 | 767 | 158.8 |
| B | 0 | 198 | 111374 | 696.64 | 792 | 767 | 158.8 |
| C | 0 | 207 | 61328 | 324.57 | 789 | 791 | 186.5 |
| C | 3 | 233 | 10123 | 50.03 | 789 | 791 | 186.5 |
| C | 12 | 250 | 6565 | 30.96 | 789 | 791 | 186.5 |
| D | 2 | 249 | 314583 | 1578.76 | 785 | 757 | 198.8 |
| D | 5 | 32 | 186453 | 934.18 | 785 | 757 | 198.8 |
| D | 2 | 165 | 181269 | 908.1 | 785 | 757 | 198.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

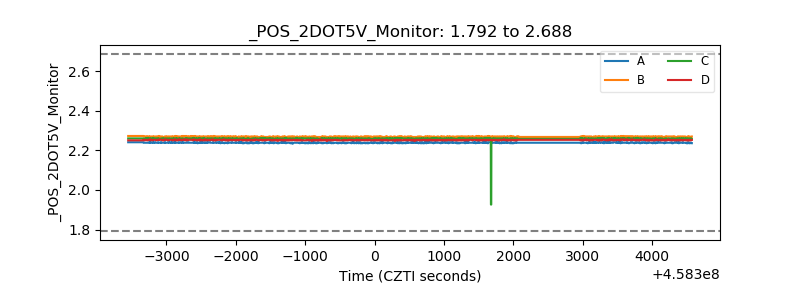

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
