| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006332_47509cztM0_level2.fits | modeM0/AS1A13_037T05_9000006332_47509cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,029,120 | 131,970,240 |
| Size | 536.0 MB | 125.9 MB |
| Events in quadrant A | 8,221,088 | 867,331 |
| Events in quadrant B | 4,363,064 | 911,957 |
| Events in quadrant C | 3,523,759 | 863,614 |
| Events in quadrant D | 4,067,716 | 789,094 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29757 | 0 |
| B | 0 | 18504 | 0 |
| C | 0 | 16667 | 0 |
| D | 0 | 18055 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8114 | 343 | 4.227262% |
| B | 8114 | 81 | 0.998275% |
| C | 8114 | 4 | 0.049298% |
| D | 8114 | 57 | 0.702490% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8114 | 8114 | 146 | 146 | 1.80% | 1.80% |  |
| B | 8114 | 8114 | 20 | 20 | 0.25% | 0.25% |  |
| C | 8114 | 8114 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8114 | 8114 | 46 | 46 | 0.57% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4188158 | 22049.5 | 899 | 879 | 189.9 |
| A | 13 | 248 | 362835 | 1906.0 | 899 | 879 | 189.9 |
| A | 15 | 235 | 93669 | 488.62 | 899 | 879 | 189.9 |
| B | 0 | 200 | 367244 | 2042.19 | 909 | 881 | 179.4 |
| B | 5 | 32 | 227257 | 1261.87 | 909 | 881 | 179.4 |
| B | 0 | 198 | 98633 | 544.89 | 909 | 881 | 179.4 |
| C | 1 | 3 | 30460 | 140.98 | 889 | 895 | 209.7 |
| C | 3 | 233 | 22239 | 101.78 | 889 | 895 | 209.7 |
| C | 13 | 61 | 6086 | 24.75 | 889 | 895 | 209.7 |
| D | 2 | 249 | 226974 | 1020.03 | 884 | 856 | 221.7 |
| D | 2 | 165 | 115686 | 518.0 | 884 | 856 | 221.7 |
| D | 4 | 222 | 109884 | 491.83 | 884 | 856 | 221.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

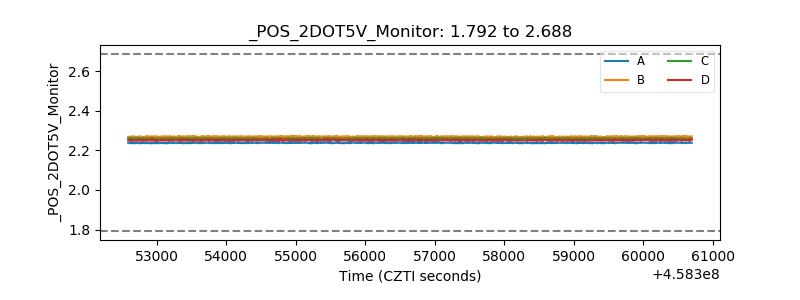

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
