| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006332_47510cztM0_level2.fits | modeM0/AS1A13_037T05_9000006332_47510cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,838,080 | 119,278,080 |
| Size | 515.8 MB | 113.8 MB |
| Events in quadrant A | 7,589,796 | 777,972 |
| Events in quadrant B | 3,820,809 | 821,157 |
| Events in quadrant C | 3,262,830 | 783,415 |
| Events in quadrant D | 4,764,573 | 706,464 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 2 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 4 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27683 | 299 |
| B | 0 | 16646 | 127 |
| C | 0 | 15565 | 115 |
| D | 0 | 19691 | 153 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7485 | 354 | 4.729459% |
| B | 7510 | 136 | 1.810919% |
| C | 7510 | 43 | 0.572570% |
| D | 7517 | 226 | 3.006519% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7608 | 7539 | 87 | 87 | 1.14% | 1.15% |  |
| B | 7608 | 7557 | 26 | 26 | 0.34% | 0.34% |  |
| C | 7608 | 7552 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7609 | 7553 | 111 | 111 | 1.46% | 1.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3861032 | 22081.31 | 829 | 812 | 174.8 |
| A | 9 | 191 | 268282 | 1529.99 | 829 | 812 | 174.8 |
| A | 13 | 248 | 187865 | 1069.98 | 829 | 812 | 174.8 |
| B | 5 | 32 | 211823 | 1255.87 | 843 | 820 | 168.0 |
| B | 0 | 200 | 144623 | 855.9 | 843 | 820 | 168.0 |
| B | 0 | 198 | 65923 | 387.49 | 843 | 820 | 168.0 |
| C | 1 | 3 | 17913 | 86.71 | 829 | 832 | 197.0 |
| C | 3 | 233 | 11179 | 52.52 | 829 | 832 | 197.0 |
| C | 13 | 61 | 5518 | 23.79 | 829 | 832 | 197.0 |
| D | 6 | 112 | 595643 | 2893.32 | 816 | 788 | 205.6 |
| D | 2 | 249 | 268462 | 1301.94 | 816 | 788 | 205.6 |
| D | 12 | 1 | 186917 | 905.31 | 816 | 788 | 205.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

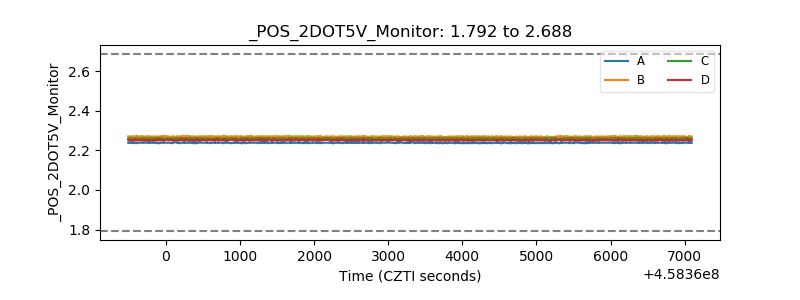

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
