| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_002T01_9000006334_47519cztM0_level2.fits | modeM0/AS1C09_002T01_9000006334_47519cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,501,440 | 101,350,080 |
| Size | 442.0 MB | 96.7 MB |
| Events in quadrant A | 6,124,182 | 680,850 |
| Events in quadrant B | 4,332,058 | 686,060 |
| Events in quadrant C | 2,555,021 | 677,384 |
| Events in quadrant D | 3,695,204 | 617,990 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22062 | 1 |
| B | 0 | 16882 | 1 |
| C | 0 | 11823 | 1 |
| D | 0 | 14959 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5811 | 258 | 4.439855% |
| B | 5812 | 295 | 5.075705% |
| C | 5812 | 10 | 0.172058% |
| D | 5812 | 132 | 2.271163% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7071 | 5812 | 54 | 54 | 0.76% | 0.93% |  |
| B | 7072 | 5813 | 128 | 128 | 1.81% | 2.20% |  |
| C | 7072 | 5813 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7072 | 5813 | 141 | 141 | 1.99% | 2.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3418120 | 24998.93 | 665 | 651 | 136.7 |
| A | 9 | 191 | 101444 | 737.31 | 665 | 651 | 136.7 |
| A | 13 | 248 | 25882 | 184.57 | 665 | 651 | 136.7 |
| B | 5 | 172 | 542250 | 4321.92 | 658 | 640 | 125.3 |
| B | 5 | 32 | 499349 | 3979.58 | 658 | 640 | 125.3 |
| B | 5 | 171 | 266521 | 2121.67 | 658 | 640 | 125.3 |
| C | 1 | 3 | 5156 | 29.65 | 651 | 653 | 151.9 |
| C | 12 | 250 | 4738 | 26.9 | 651 | 653 | 151.9 |
| C | 13 | 61 | 4417 | 24.78 | 651 | 653 | 151.9 |
| D | 6 | 112 | 385849 | 2393.31 | 648 | 629 | 161.0 |
| D | 4 | 222 | 302082 | 1872.88 | 648 | 629 | 161.0 |
| D | 7 | 38 | 180216 | 1115.75 | 648 | 629 | 161.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

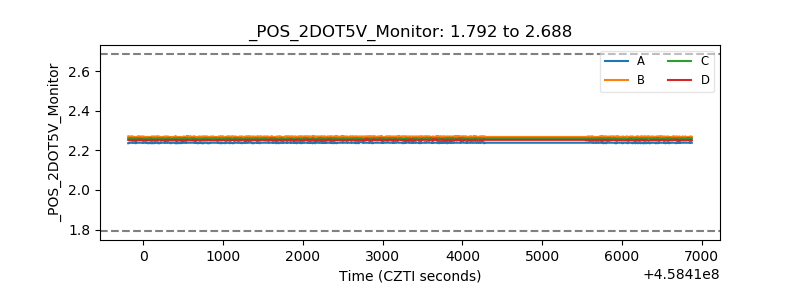

| +2.5 Volts monitor |  |

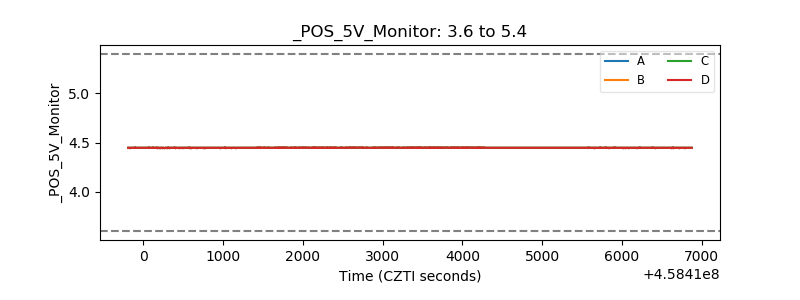

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
