| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_002T01_9000006334_47522cztM0_level2.fits | modeM0/AS1C09_002T01_9000006334_47522cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,575,360 | 118,987,200 |
| Size | 516.5 MB | 113.5 MB |
| Events in quadrant A | 7,543,335 | 772,096 |
| Events in quadrant B | 4,038,604 | 812,919 |
| Events in quadrant C | 3,336,426 | 788,394 |
| Events in quadrant D | 4,552,091 | 711,650 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27103 | 2 |
| B | 0 | 17248 | 2 |
| C | 0 | 15612 | 2 |
| D | 0 | 18934 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7442 | 465 | 6.248320% |
| B | 7442 | 189 | 2.539640% |
| C | 7442 | 77 | 1.034668% |
| D | 7442 | 250 | 3.359312% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7697 | 7444 | 51 | 51 | 0.66% | 0.69% |  |
| B | 7697 | 7444 | 53 | 53 | 0.69% | 0.71% |  |
| C | 7697 | 7444 | 20 | 20 | 0.26% | 0.27% |  |
| D | 7697 | 7444 | 151 | 151 | 1.96% | 2.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4171618 | 24955.82 | 811 | 794 | 167.1 |
| A | 13 | 248 | 95143 | 564.53 | 811 | 794 | 167.1 |
| A | 9 | 191 | 74660 | 441.97 | 811 | 794 | 167.1 |
| B | 5 | 32 | 379554 | 2357.8 | 818 | 793 | 160.6 |
| B | 0 | 200 | 256810 | 1593.72 | 818 | 793 | 160.6 |
| B | 0 | 198 | 52294 | 320.6 | 818 | 793 | 160.6 |
| C | 14 | 254 | 113582 | 593.55 | 808 | 809 | 190.0 |
| C | 12 | 2 | 29298 | 149.94 | 808 | 809 | 190.0 |
| C | 1 | 3 | 27548 | 140.73 | 808 | 809 | 190.0 |
| D | 2 | 165 | 386741 | 1903.98 | 799 | 772 | 202.7 |
| D | 7 | 38 | 358230 | 1763.34 | 799 | 772 | 202.7 |
| D | 2 | 249 | 331480 | 1631.38 | 799 | 772 | 202.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

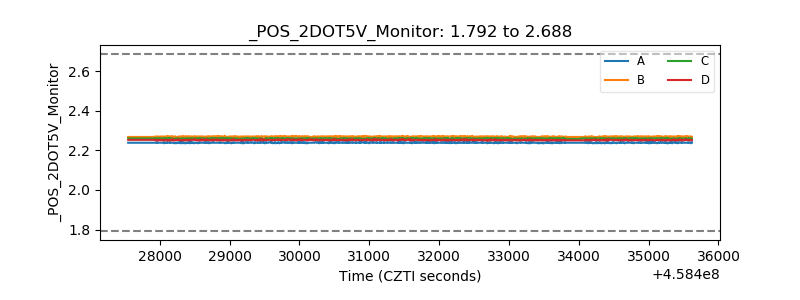

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
