| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_002T01_9000006334_47524cztM0_level2.fits | modeM0/AS1C09_002T01_9000006334_47524cztM0_level2_quad_clean.evt |
| Size (bytes) | 608,497,920 | 134,225,280 |
| Size | 580.3 MB | 128.0 MB |
| Events in quadrant A | 8,341,171 | 893,412 |
| Events in quadrant B | 4,208,603 | 912,745 |
| Events in quadrant C | 3,648,643 | 883,221 |
| Events in quadrant D | 5,671,678 | 788,011 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30347 | 2 |
| B | 0 | 18375 | 0 |
| C | 0 | 17143 | 0 |
| D | 0 | 22873 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8446 | 192 | 2.273265% |
| B | 8447 | 117 | 1.385107% |
| C | 8447 | 14 | 0.165739% |
| D | 8447 | 391 | 4.628862% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8446 | 8446 | 71 | 71 | 0.84% | 0.84% |  |
| B | 8447 | 8447 | 55 | 55 | 0.65% | 0.65% |  |
| C | 8447 | 8447 | 3 | 3 | 0.04% | 0.04% |  |
| D | 8447 | 8447 | 338 | 338 | 4.00% | 4.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4390101 | 23044.52 | 921 | 901 | 190.5 |
| A | 13 | 248 | 214784 | 1122.95 | 921 | 901 | 190.5 |
| A | 9 | 191 | 163582 | 854.12 | 921 | 901 | 190.5 |
| B | 5 | 32 | 285520 | 1561.52 | 927 | 898 | 182.3 |
| B | 0 | 200 | 113495 | 617.74 | 927 | 898 | 182.3 |
| B | 0 | 198 | 48639 | 261.92 | 927 | 898 | 182.3 |
| C | 14 | 254 | 21172 | 94.27 | 916 | 919 | 214.8 |
| C | 9 | 69 | 20431 | 90.82 | 916 | 919 | 214.8 |
| C | 1 | 3 | 16362 | 71.88 | 916 | 919 | 214.8 |
| D | 2 | 249 | 827531 | 3669.3 | 895 | 866 | 225.3 |
| D | 7 | 38 | 639920 | 2836.55 | 895 | 866 | 225.3 |
| D | 4 | 222 | 481492 | 2133.34 | 895 | 866 | 225.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

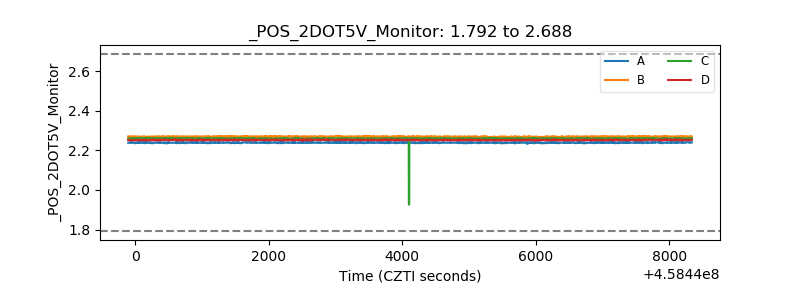

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
