| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_002T01_9000006334_47534cztM0_level2.fits | modeM0/AS1C09_002T01_9000006334_47534cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,409,920 | 100,566,720 |
| Size | 432.4 MB | 95.9 MB |
| Events in quadrant A | 6,436,170 | 663,016 |
| Events in quadrant B | 3,421,271 | 678,317 |
| Events in quadrant C | 2,637,804 | 673,964 |
| Events in quadrant D | 3,829,616 | 616,561 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23192 | 1 |
| B | 0 | 14078 | 1 |
| C | 0 | 12156 | 1 |
| D | 0 | 15376 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5908 | 369 | 6.245768% |
| B | 5909 | 320 | 5.415468% |
| C | 5909 | 51 | 0.863090% |
| D | 5909 | 147 | 2.487731% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7083 | 5908 | 71 | 71 | 1.00% | 1.20% |  |
| B | 7084 | 5910 | 153 | 153 | 2.16% | 2.59% |  |
| C | 7084 | 5910 | 4 | 4 | 0.06% | 0.07% |  |
| D | 7084 | 5910 | 72 | 72 | 1.02% | 1.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3440711 | 25255.25 | 666 | 653 | 136.2 |
| A | 9 | 191 | 392940 | 2879.98 | 666 | 653 | 136.2 |
| A | 15 | 235 | 19296 | 136.87 | 666 | 653 | 136.2 |
| B | 5 | 255 | 525403 | 4113.98 | 665 | 645 | 127.6 |
| B | 0 | 200 | 121731 | 949.29 | 665 | 645 | 127.6 |
| B | 0 | 198 | 89622 | 697.56 | 665 | 645 | 127.6 |
| C | 12 | 2 | 28143 | 178.28 | 660 | 665 | 154.1 |
| C | 12 | 250 | 23679 | 149.31 | 660 | 665 | 154.1 |
| C | 1 | 3 | 9445 | 56.96 | 660 | 665 | 154.1 |
| D | 2 | 165 | 936285 | 5724.88 | 658 | 636 | 163.4 |
| D | 4 | 222 | 102935 | 625.93 | 658 | 636 | 163.4 |
| D | 7 | 55 | 61937 | 375.08 | 658 | 636 | 163.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

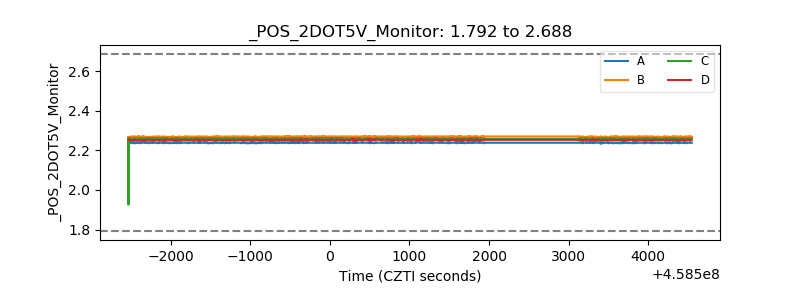

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
