| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_002T01_9000006334_47536cztM0_level2.fits | modeM0/AS1C09_002T01_9000006334_47536cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,951,680 | 110,139,840 |
| Size | 453.9 MB | 105.0 MB |
| Events in quadrant A | 7,036,794 | 718,264 |
| Events in quadrant B | 3,189,007 | 753,066 |
| Events in quadrant C | 2,890,054 | 727,384 |
| Events in quadrant D | 3,974,005 | 661,873 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25422 | 1 |
| B | 0 | 14321 | 1 |
| C | 0 | 13834 | 1 |
| D | 0 | 16528 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6806 | 329 | 4.833970% |
| B | 6807 | 83 | 1.219333% |
| C | 6807 | 17 | 0.249743% |
| D | 6807 | 130 | 1.909799% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7401 | 6807 | 37 | 37 | 0.50% | 0.54% |  |
| B | 7402 | 6808 | 14 | 14 | 0.19% | 0.21% |  |
| C | 7402 | 6808 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7402 | 6808 | 92 | 92 | 1.24% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3773761 | 24720.37 | 736 | 721 | 152.6 |
| A | 9 | 191 | 354158 | 2315.66 | 736 | 721 | 152.6 |
| A | 13 | 248 | 50720 | 327.59 | 736 | 721 | 152.6 |
| B | 0 | 200 | 74455 | 506.63 | 746 | 723 | 145.5 |
| B | 5 | 32 | 58492 | 396.94 | 746 | 723 | 145.5 |
| B | 0 | 190 | 51678 | 350.12 | 746 | 723 | 145.5 |
| C | 1 | 3 | 15900 | 88.77 | 731 | 735 | 170.8 |
| C | 12 | 250 | 12526 | 69.02 | 731 | 735 | 170.8 |
| C | 14 | 254 | 8901 | 47.8 | 731 | 735 | 170.8 |
| D | 2 | 165 | 503374 | 2750.69 | 726 | 701 | 182.7 |
| D | 4 | 222 | 268811 | 1467.13 | 726 | 701 | 182.7 |
| D | 2 | 249 | 157769 | 859.49 | 726 | 701 | 182.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

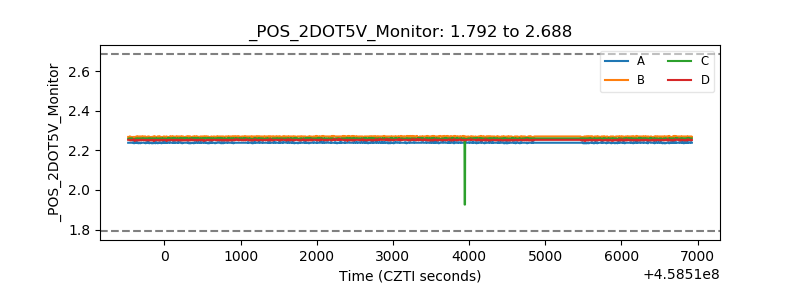

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
