| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_002T01_9000006334_47546cztM0_level2.fits | modeM0/AS1C09_002T01_9000006334_47546cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,248,000 | 107,832,960 |
| Size | 519.0 MB | 102.8 MB |
| Events in quadrant A | 6,701,584 | 730,954 |
| Events in quadrant B | 3,017,101 | 758,258 |
| Events in quadrant C | 2,834,993 | 731,677 |
| Events in quadrant D | 7,102,627 | 602,446 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24772 | 1 |
| B | 0 | 13257 | 1 |
| C | 0 | 12971 | 1 |
| D | 0 | 25427 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6324 | 266 | 4.206199% |
| B | 6325 | 98 | 1.549407% |
| C | 6325 | 56 | 0.885375% |
| D | 6324 | 1005 | 15.891841% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7479 | 6324 | 36 | 36 | 0.48% | 0.57% |  |
| B | 7480 | 6325 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7480 | 6325 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7479 | 6324 | 828 | 828 | 11.07% | 13.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3702868 | 24709.5 | 727 | 712 | 149.8 |
| A | 13 | 248 | 80357 | 531.58 | 727 | 712 | 149.8 |
| A | 9 | 191 | 75515 | 499.26 | 727 | 712 | 149.8 |
| B | 5 | 172 | 47683 | 333.97 | 728 | 708 | 140.7 |
| B | 4 | 158 | 19268 | 131.95 | 728 | 708 | 140.7 |
| B | 0 | 190 | 17489 | 119.3 | 728 | 708 | 140.7 |
| C | 1 | 3 | 31655 | 185.69 | 716 | 720 | 166.6 |
| C | 3 | 233 | 6719 | 36.01 | 716 | 720 | 166.6 |
| C | 14 | 254 | 5249 | 27.19 | 716 | 720 | 166.6 |
| D | 2 | 165 | 3851236 | 22588.82 | 689 | 666 | 170.5 |
| D | 2 | 249 | 219466 | 1283.56 | 689 | 666 | 170.5 |
| D | 12 | 2 | 135590 | 791.51 | 689 | 666 | 170.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

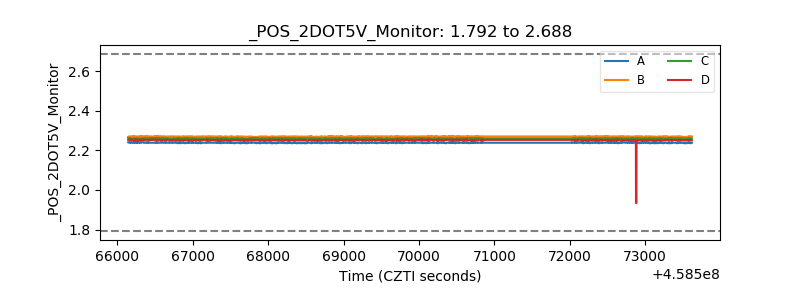

| +2.5 Volts monitor |  |

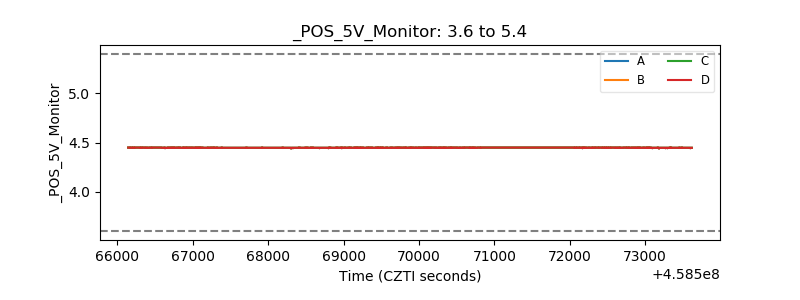

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
